Removing Upper Trailing Arm

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

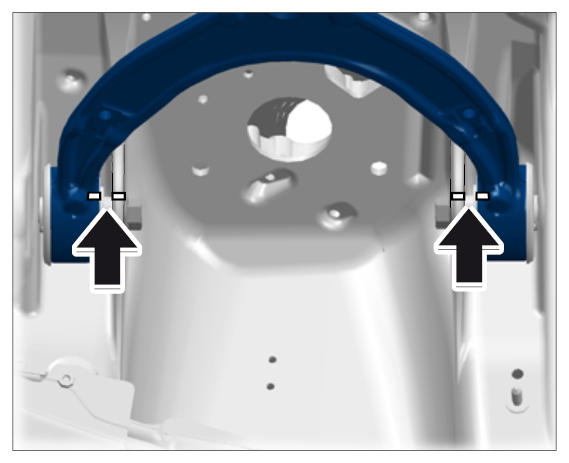

If the upper trailing arm is to be used again, mark its position with respect to the body -arrows- using a felt-tip pen for example (assembly aid).

Production seams on the trailing arm can serve as the marking (useful when replacing the trailing arm).
Apply a different marking on the body.

Fig 1: Locating Marking On Upper Trailing Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded joints can no longer be adjusted once the work is done as the threaded joints are no longer accessible.

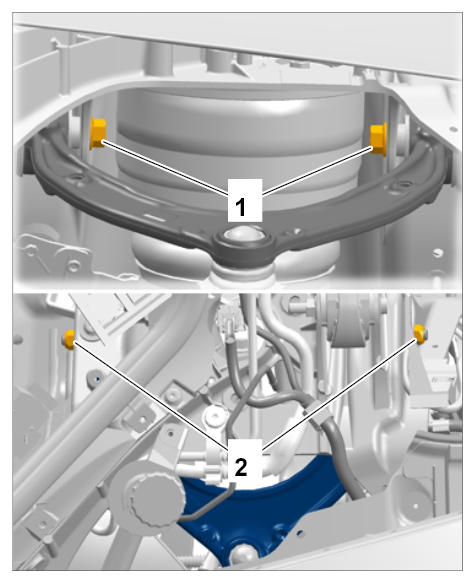

Loosen fastening screws -1- and remove the trailing arm. Fastening nuts -2- can be accessed from the plenum panel.

Fig 2: Identifying Mounting For Upper Trailing Arm And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

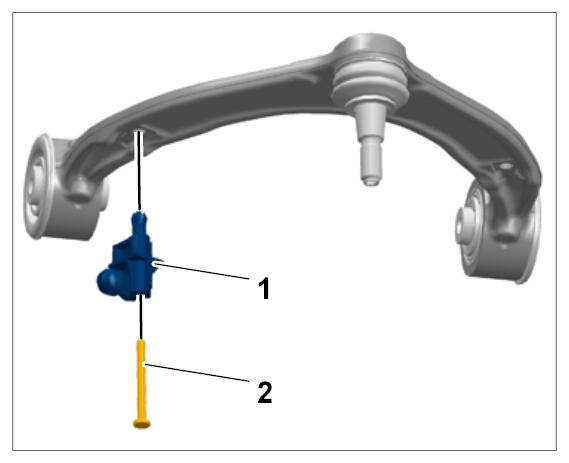

If the trailing arm is replaced, the lock for the headlight levelling system sensor must be refitted on the new trailing arm.

Fig 3: Removing Expansion Rivet From Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. To do this, remove expansion rivet -2- from the lock -1- and fit it on the new trailing arm in reverse order.
