Master Gear Unit Elevating Platform WE 1206

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Only the supports marked with single digits (e.g. P1, P2, P3) are used for mounting the front axle!

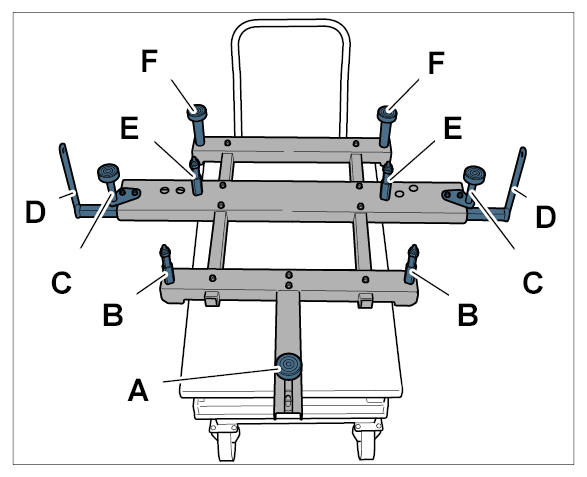

Fig 1: Overview Of Assembly Drivers
G09807231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Legend for assembly drivers and supports

Item Designation Explanation
A  Transmission bracket For mounting on the transmission mount.
B  Assembly driver on cross panel For mounting on the cross panel.
C  Wheel hub holder Secures the axles and prevents them from tipping over.
D  Steering knuckle bracket Used in conjunction with the wheel hub holder C  to prevent the axles and spring struts from tipping over.
E  Assembly driver on front-axle carrier For mounting on the rear of the front-axle carrier.
F  Front-axle carrier support For mounting on the front of the front-axle carrier.

Press-off tool T40010

Spring compressor VW 552
