Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Subsequent work for upper torque support =>
    1. 1.1. Fit right plenum panel cover. For details, see → 852219 REMOVING AND INSTALLING PLENUM PANEL COVER
    2. 1.2. Close the bonnet.

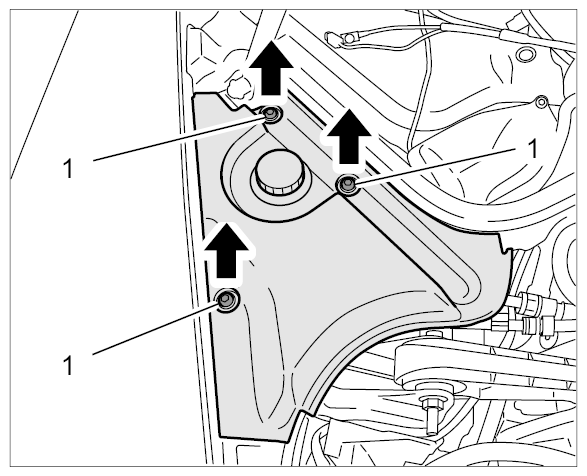

    Fig 1: Unscrewing Fastening Screws
    G09804271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Subsequent work for lower torque support =>
    1. 1.1. Fit front underbody panelling (engine guard). → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY
