Removing Torque Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removing upper torque support =>
    1. 1.1. Remove the two screws and nuts on the body and valve cover → Installation position of upper torque support  .
      1. Aluminum screw, M10
      2. M10 nut; counter when using tools.
      3. Bracket on valve cover
      4. Bracket on body
      5. Torque support; part identification on the back, must be installed in opposite direction to direction of travel.

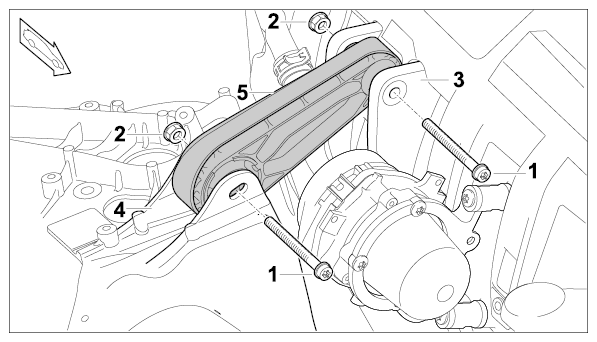

      Fig 1: Identifying Installation Position Of Upper Torque Support
      G09804267Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Remove torque support.
  1. Removing lower torque support =>
    1. 1.1. Remove the two screws on the engine bracket and on the supporting frame → Installation position of lower torque support  .
      1. Steel screw, M10 x 95
      2. Steel screw, M10 x 65
      3. Torque support

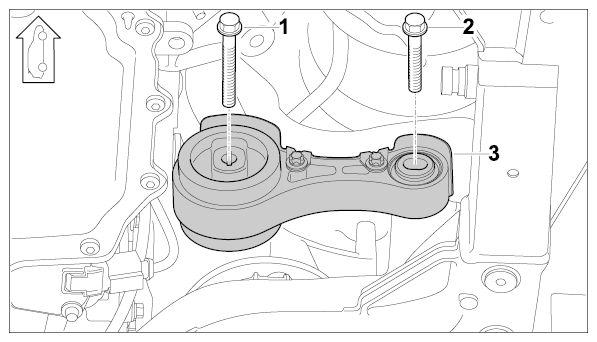

      Fig 2: Identifying Installation Position Of Lower Torque Support
      G09804268Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Remove torque support.
