Removing Right Engine Mount

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

Observe the following sequence for removing and installing the engine mounting.

Remove right engine mounting
Remove left engine mounting
Install left engine mounting
Install right engine mounting

Remove the primary catalytic converter on the right side .
→ 267619 REMOVING AND INSTALLING PRIMARY CATALYTIC CONVERTER (TURBO)

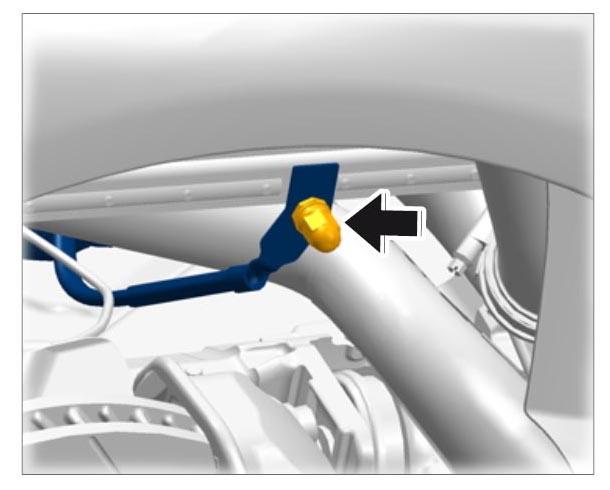

Undo fastening nut for the ground cable -arrow- on the front right frame carrier.

Fig 1: Locating Ground Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Risk of straining engine parts
- Hoses, cables or other flexibly routed components can break and tear.
→ Carefully lower the engine one step at a time.

→ Check fitted parts at intervals for signs of strain or cracks.

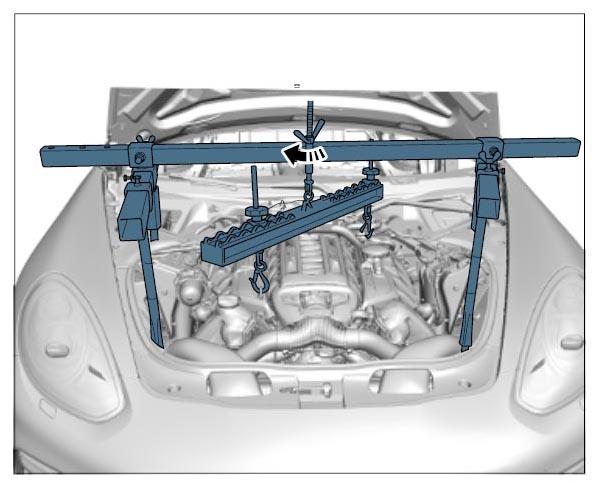

Turn the wing screw on the suspending device anti-clockwise and lower the engine. → Suspending device for engine

Fig 2: Suspending Device For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

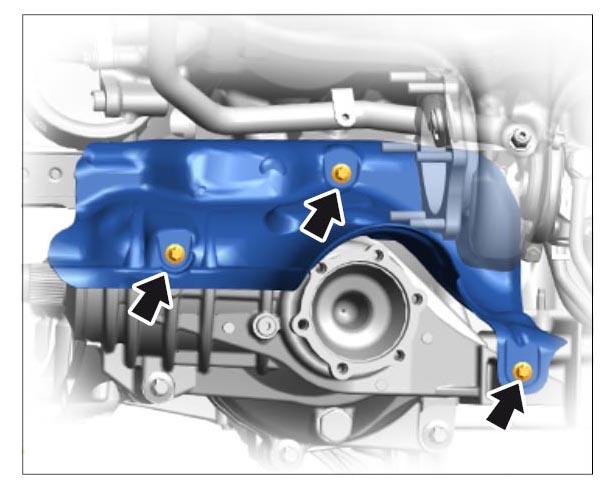

Loosen the three fastening screws on the heat shield -arrows- for the final drive.

Fig 3: Locating Fastening Screws On Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

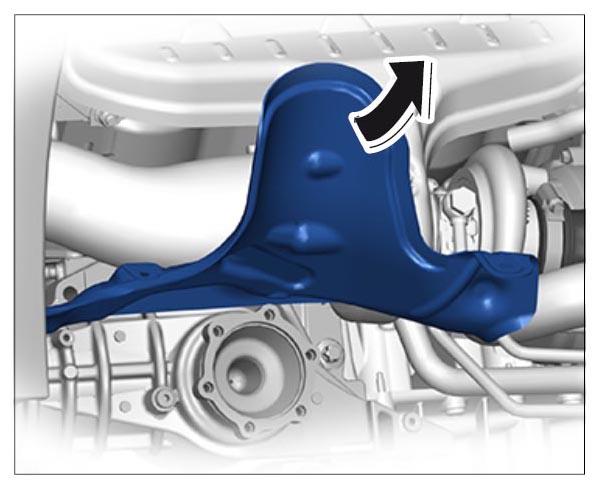

Remove heat shield and screws. -arrow-

Fig 4: Removing Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

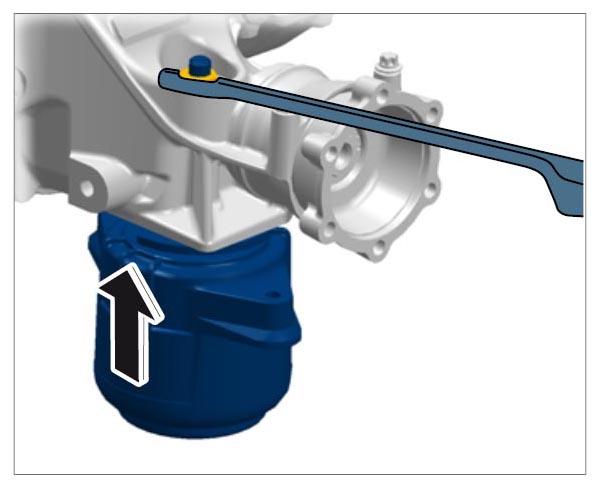

Press against the engine mount from below -arrow- and loosen the fastening nut on the engine mount.

Fig 5: Loosening Engine Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

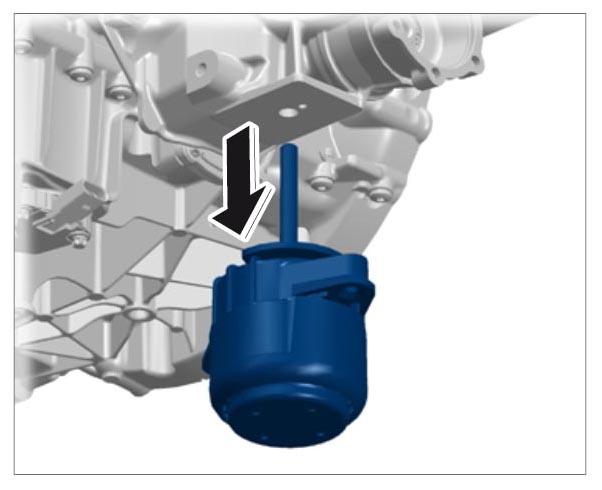

Remove engine mount from the guide. -arrow-

Fig 6: Removing Engine Mount (4WD Turbo Engine)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
