Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw on and tighten nut -arrow-  for right engine mount.
    Fig 1: Locating Right Engine Mount
    G09804239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw on and tighten nut -arrow-  for left engine mount.
    Fig 2: Locating Left Engine Mount
    G09804237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove engine support. → WM 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)
  4. Install throttle valve cover.
    1. 4.1. Fit throttle valve cover.
    2. 4.2. Connect the vacuum hose -3-  at the throttle valve cover and clip in tank vent line -4-  and XY line -5-  .
    3. 4.3. Fit throttle valve cover and tighten screw-type clamp -2-  .
    4. 4.4. Fit cover at the connection for the air cleaner and tighten screw-type clamp -1-  .

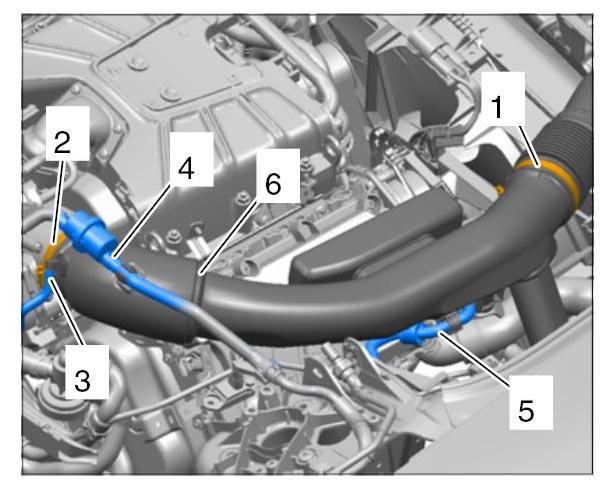

      Fig 3: Identifying Throttle Valve Cover
      G09804245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install engine cover. → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
  6. Connect the battery. → 270619 REMOVING AND INSTALLING BATTERY
