Preliminary Work: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. → 270619 REMOVING AND INSTALLING BATTERY
  2. Remove engine cover. → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
  3. Remove throttle valve cover.
    1. 3.1. Loosen screw-type clamp -1-  on the connection for the air-cleaner cowl and pull off throttle valve cover.
    2. 3.2. Loosen screw-type clamp -2-  on the throttle valve and pull off throttle valve cover.
    3. 3.3. Pull off vacuum hose -3-  at the throttle valve cover and unclip tank vent line -4-  and XY line -5-  .
    4. 3.4. Pull throttle valve cover up and off.

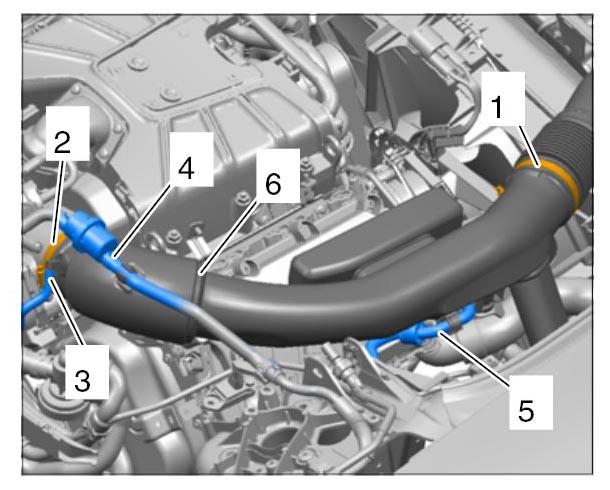

      Fig 1: Identifying Throttle Valve Cover
      G09804235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove power-steering reservoir and set it aside. → 489719 REMOVING AND INSTALLING RESERVOIR
  5. Support the engine on the body. → 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)
