Removing engine

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Caustic fluids
  • Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

IMPORTANT: For installation, it is a good idea to mark the installation position of the front-axle carrier diagonally at at least two places on the body. To do this, place the marks vertically with respect to the floor of the body using a felt-tip pen (e.g. mark along the front-axle carrier mount with the pen). This makes it easier to correctly position the front-axle carrier on the body during re-installation.
IMPORTANT: When lowering the engine, make sure that cables, hoses or lines are not trapped accidentally between the engine and body. To prevent this, a second person must make sure that the cables, hoses and lines do not get caught.
IMPORTANT: The pictures shown in this document may differ from the original.
  1. Remove engine wire harness in the plenum panel.
    1. Release the relay fuse box in the plenum panel at both sides, lift it up and disconnect the wire harness for the DME control unit in the plenum panel. -arrows-

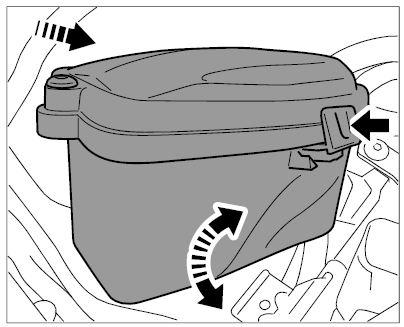

      Fig 1: Lifting Up Relay Fuse Box
      G00541979

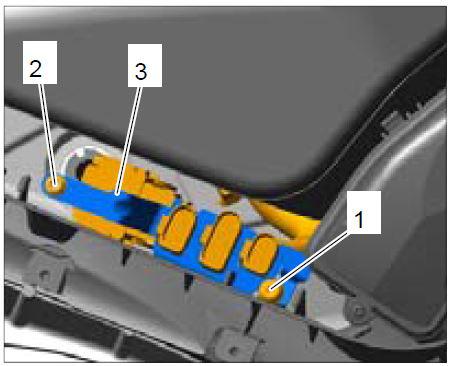

    2. Remove cable plug holder.
      1. Unscrew screw -1- and nut -2- and move holder with cable plug -3- aside.
        Fig 2: Cable Plug Holder
        G00541980
    3. Release connector on the DME control unit and disconnect it -arrows-  .

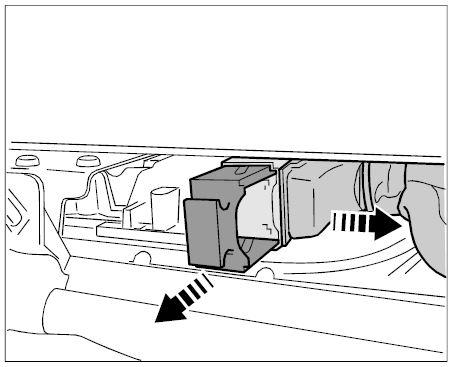

      Fig 3: Connector For DME Control Unit
      G00541981
    4. Remove sealing sleeve with wire harness -arrow-  from the plenum panel. → Sleeve with wire harness

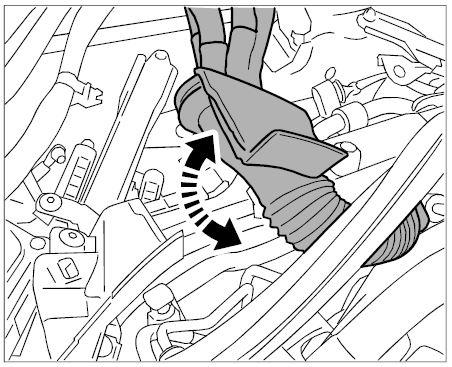

      Fig 4: Sleeve With Wire Harness
      G00541982
    5. Place engine wire harness on the engine block.
  2. Remove throttle valve cover.
    1. Loosen screw-type clamp -1- on the connection for the air-cleaner cowl and pull off throttle valve cover.
    2. Loosen screw-type clamp -2- on the throttle valve and pull off throttle valve cover.
    3. Pull off vacuum hose -3- at the throttle valve cover and unclip tank vent line -4- and XY line -5- .
    4. Pull throttle valve cover up and off.

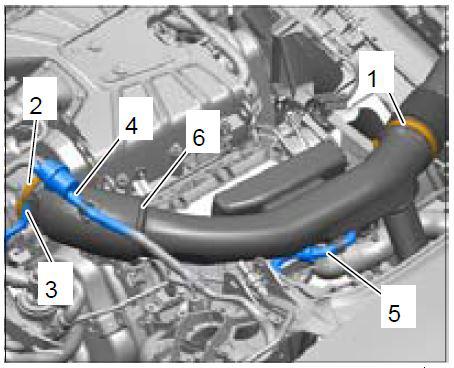

    Fig 5: Throttle Valve Cover
    G00541983
  3. Disconnect vacuum line for the brake booster in the engine compartment.
  4. Unplug pilot connector and high-voltage lines from the power electronics. WM 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO ELECTRIC MOTOR (PANAMERA S E-HYBRID, PANAMERA S HYBRID)
  5. Disconnect vent line -2- from the bleeder valve -1- and remove it from the clips -arrows-  .

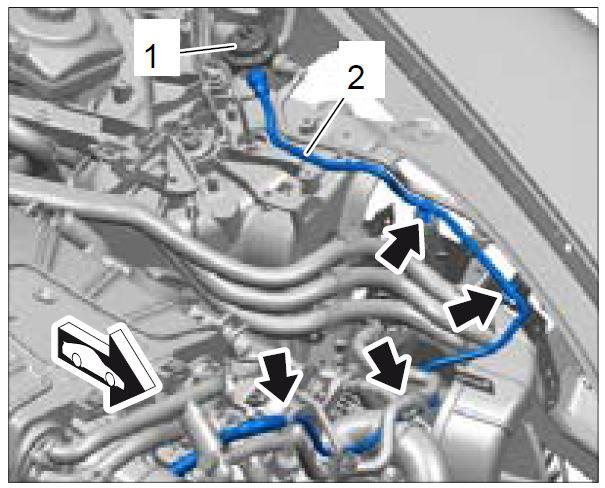

    Fig 6: Vent Line
    G00541984
  6. Detach holder with high-voltage lines and set it aside.
    1. Unscrew screw -1- and nut -2- on the holder -3- .
    2. Open the clips -arrows-  .
    3. Unclip high-voltage lines -4- and set them aside.

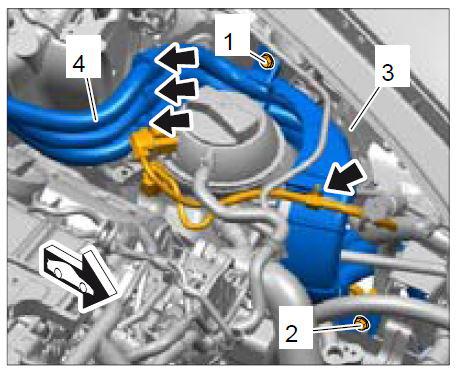

    Fig 7: High-Voltage Lines In Engine Compartment
    G00541985
  7. Pull vent line -1- off the coolant reservoir -2- for the low-temperature system.
    1. Loosen clamp -arrows-  and pull off vent line.

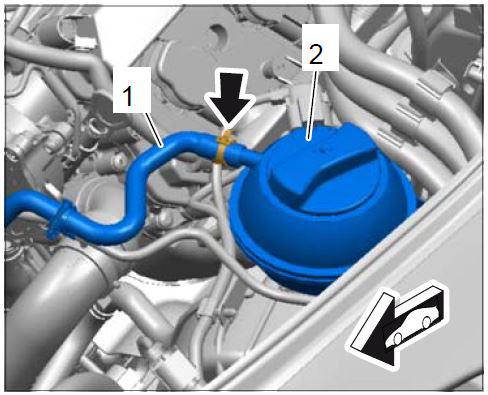

    Fig 8: Vent Line On Low-Temperature Coolant Reservoir
    G00541986
  8. Remove coolant supply hose -1- .
    1. Unclip vent lines -2- .
    2. Release safety clips -3- and pull off and remove the coolant hose. 1

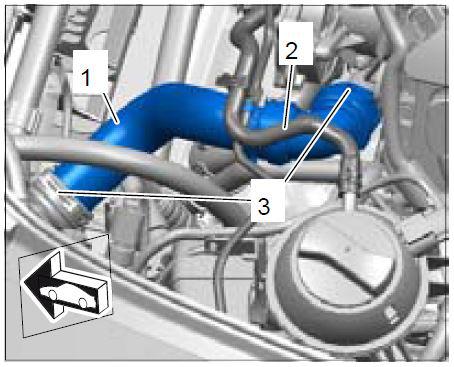

    Fig 9: Coolant Supply Hose
    G00541987
  9. Unclip coolant filling line for low-temperature system -1- at the engine.
    1. Loosen clip -2- from the holder -3-

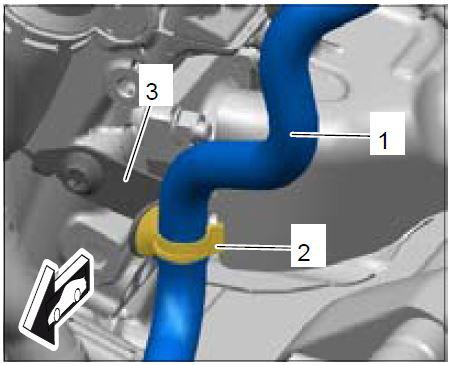

    Fig 10: Coolant Filling Line For Lowtemperature System
    G00541988
    10. NOTE: Opened refrigerant system for repairs.
    • Moisture penetrated into the refrigerant system.
    • Risk of contaminating the refrigerant circuit.
    • Risk of saturation and irreparable damage to desiccator.
    • Irreparable damage to the desiccator can damage the compressor and evaporator.

    → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

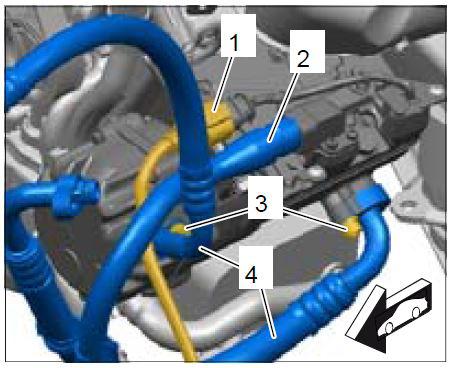

    Fig 11: Refrigerant Lines And Electric Connectors At The Air-Conditioning Compressor
    G00541989
  10. Remove refrigerant lines and electric connectors at the air-conditioning compressor.
    1. Disconnect electric connector -1- and high-voltage line -2- .
    2. Unscrew screws -3- and pull off refrigerant lines -4- .
  11. Release and disconnect oxygen sensor plug connection at both sides.
    1. Release and disconnect connectors -1- and -3- .
    2. Remove connectors -2- and -4- from the holder and release and disconnect them.

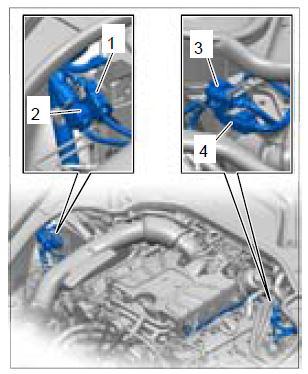

    Fig 12: Plug Connections For Oxygen Sensors In Engine Compartment
    G00541990
    12. WARNING: Highly inflammable or explosive materials
    • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapours.

    → Attach warning sign in a clearly visible position.

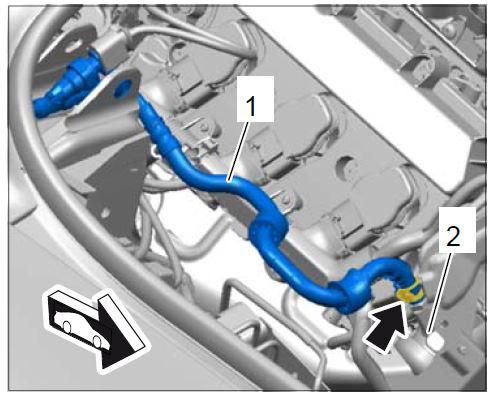

    Fig 13: Fuel Hose On High-Pressure Pump
    G00541991
  12. Disconnect the fuel hose -1- at the high-pressure pump -2- by loosening the clamp -arrow- and pulling off the fuel hose.
  13. Disconnect electric connector -1- from the fuel temperature sensor -2- .

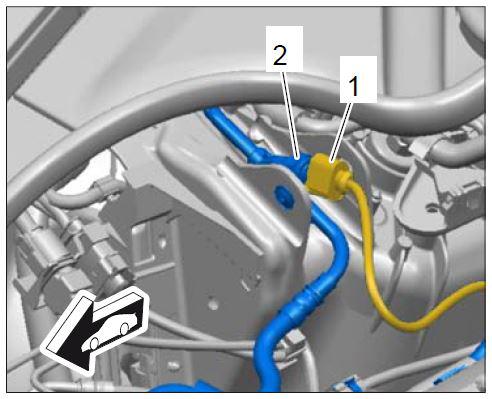

    Fig 14: Fuel Temperature Sensor
    G00556211

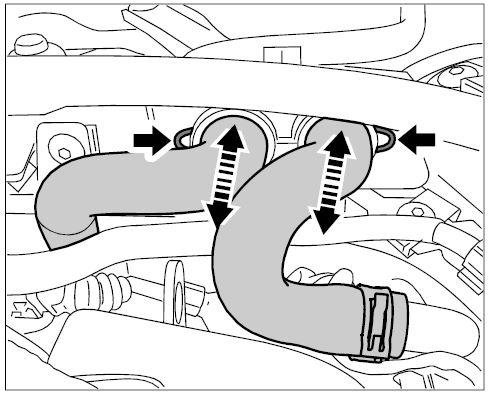

  14. Release clip on coolant hoses -arrows-  at the plenum panel and remove them from the connection point at the plenum panel (cross panel).
    Fig 15: Removing Coolant Hoses
    G00556212
  15. Disconnect tank vent valve.
    1. Pull off electric connector -1- .
    2. Disconnect vent line -2- from the throttle valve -3- .
    3. Remove tank vent valve -4- from the holder -5- and place it on the relay and fuse box.

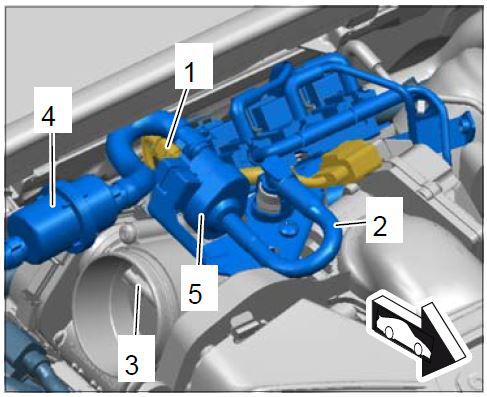

    Fig 16: Tank Vent Valve
    G00556213

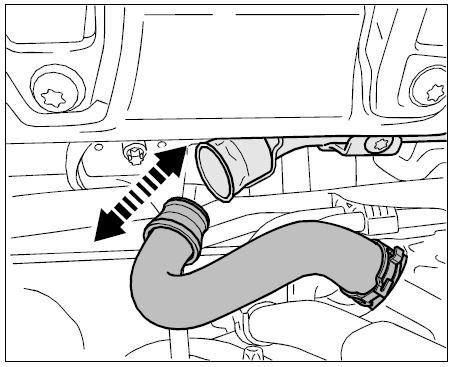

  16. Disconnect hose for coolant reservoir underneath the valve cover (cylinders 4-6) -arrow-  .
    1. Release safety clip and pull off the hose.
    Fig 17: Hose For Coolant Reservoir
    G00556214
  17. Disconnect hoses on the coolant reservoir for power-steering oil. → WM 489719 REMOVING AND INSTALLING RESERVOIR (EXCEPT PANAMERA EXECUTIVE, PANAMERA GTS, PANAMERA TURBO S, PANAMERA 4 EXECUTIVE, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.)
  18. Disconnect coolant hose -1- at the charge-air cooler by loosening the holding clamp -2- on the hydraulic pump -3- .

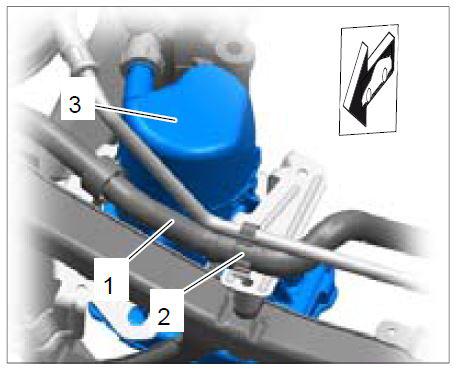

    Fig 18: Holding Clamp On Hydraulic Pump For Coolant Hose For Low-Temperature System
    G00556215
  19. Unscrew screw -1- for ground cable -3- on the engine mounting (cylinders 1-3) -3- and clamp ground cable under the longitudinal member.

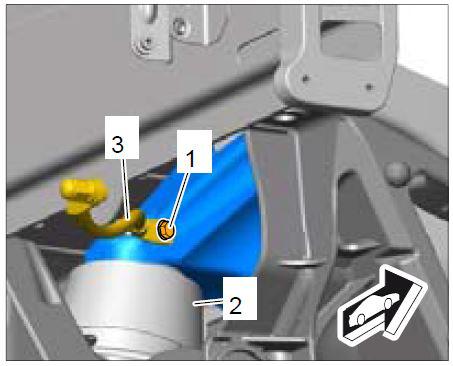

    Fig 19: Ground Cable On Engine Mounting
    G00556216

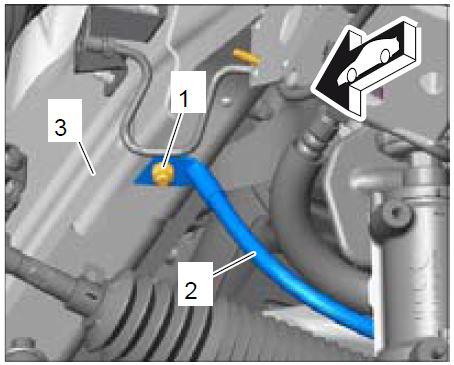

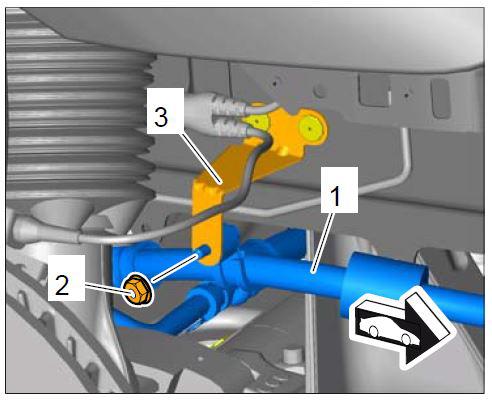

  20. Screw off nut -1- for ground cable for electric motor -2- at the body -3- and disconnect ground cable.
    Fig 20: Ground Cable For Electric Motor At The Body
    G00556217
  21. Remove reinforcement plate -1- .
    1. Unscrew fastening screws -2- .
    2. Remove reinforcement plate -1- .

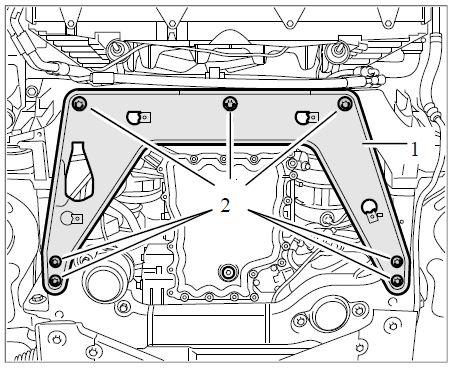

    Fig 21: Reinforcement plate
    G00556218
    22. WARNING: Hot fluid
    • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

    Fig 22: Coolant Hose For Additional Radiator For Low-Temperature System
    G00556219

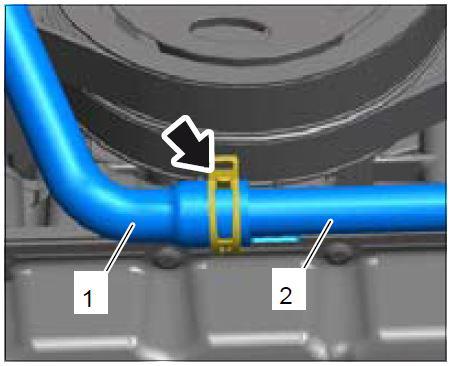

  22. Pull coolant hose -1- for low-temperature system (at the additional radiator) from the coolant line -2- .
    1. Loosen the clamp -arrow-  and pull off coolant hose.
  23. Pull coolant hose -1- for low-temperature system (from coolant pump to power electronics) off the distributor pipe -2- .
    1. Open retaining clip -3- .
    2. Loosen the clamp -arrow-  and pull off coolant hose.

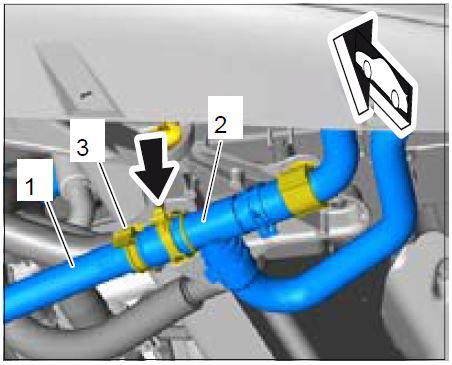

    Fig 23: Coolant Hose On Distributor Pipe For Power Electronics
    G00556220
  24. Loosen universal joint on steering gear.
    1. Disconnect connector -arrow-  at the steering gear.

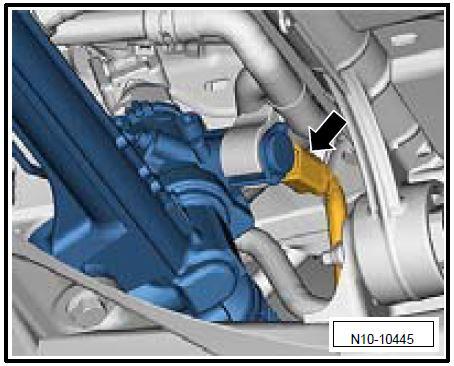

      Fig 24: Steering Gear Connector
      G00556221
    2. Unscrew fastening screws -1- from the heat shield -2- and remove the heat shield -2- .

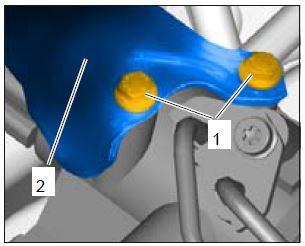

      Fig 25: Heat Shield For Steering Gear
      G00556222
    3. Unscrew screw -1- and slide the steering column -2- up -arrowoff the steering gear -3- .

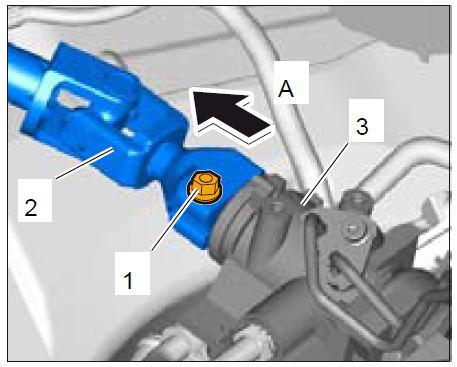

      Fig 26: Loosening Steering Column At The Steering Gear
      G00556223
  25. Disconnect hydraulic line -1- at the front right on the longitudinal member by unscrewing the nut -2- and removing the hydraulic line from the holder -3- .
    Fig 27: Hydraulic Line At The Front Right On Longitudinal Member
    G00556224

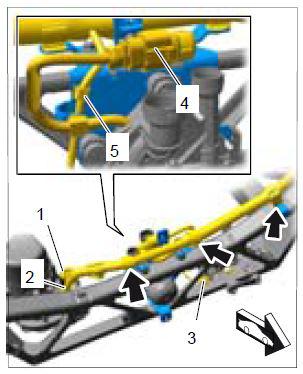

  26. Disconnect part of the engine wire harness at the front-axle carrier.
    1. Disconnect electric plug connections from the following components:
      1. Hydraulic pump -1-
      2. Power supply for hydraulic pump -2-
      3. Additional water pump for low-temperature system -3-
      4. Secondary-air pump -4-
    2. Open the line bracket -5- and remove electric line for additional water pump for low-temperature system.
    3. Open the line bracket -arrows- on the front-axle carrier and expose the wire harness.
    4. Feed the wire harness out through the front left wheel housing.
    Fig 28: Engine Wire Harness For Auxiliary Units
    G00556225
  27. Disconnect secondary air pipe -1- at the secondary-air pump -2- .

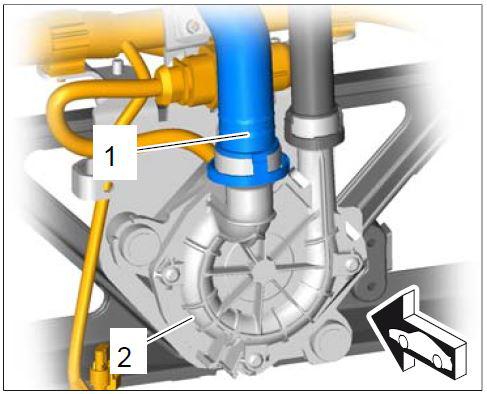

    Fig 29: Secondary Air Pipe (Intake Side) At The Secondary-Air Pump
    G00556226
    28. WARNING: ATF!
    • Possible danger of injury or damage (swollen hoses, skin irritation, danger of slipping, etc.)

    → Before lines are opened, place a cloth underneath them!

    → Components that come into contact with ATF must be cleaned IMMEDIATELY with water!

    → Take appropriate protective measures (e.g. use gloves, safety goggles, oil binding material)

    → Collect emerging ATF!

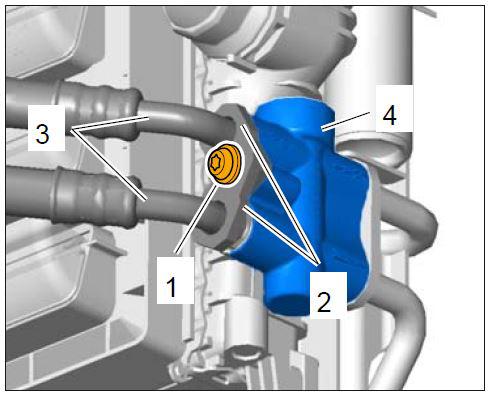

    Fig 30: ATF Lines From Thermostat To Transmission
    G00556227
  28. Loosen ATF lines at the radiator and drain ATF.
    1. Place a suitable container underneath to catch emerging ATF.
    2. Loosen the fastening screw -1- on the holder -2- for ATF lines -3- at the thermostat -4- .
    3. Pull ATF lines -3- out of the thermostat -4- .
    4. Close off ATF lines and bores on the thermostat using suitable stoppers.
  29. Remove shift cable -3- on the automatic transmission -4- . → Removing Selector Lever Cable
    1. Unclip cable -3- at the front on the ball joint -1- using disassembly tool Nr.21.
    2. Unscrew fastening screws -2- at the rear shift cable -3- .

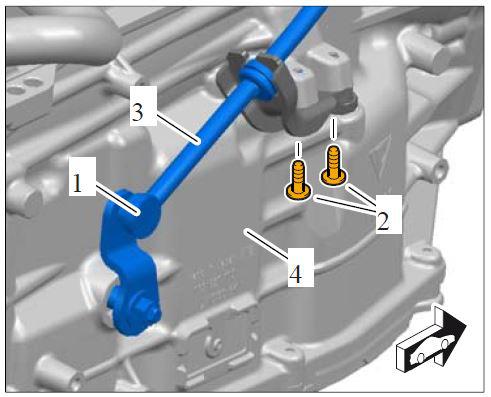

    Fig 31: Removing Shift Cable
    G00556228
    30. NOTE: Aggressive fluids
    • Risk of damage to components and surfaces

    → Do not spill fluids.

    → In the event of contact, wash the component or surface with water.

    → Replace components that are already damaged.

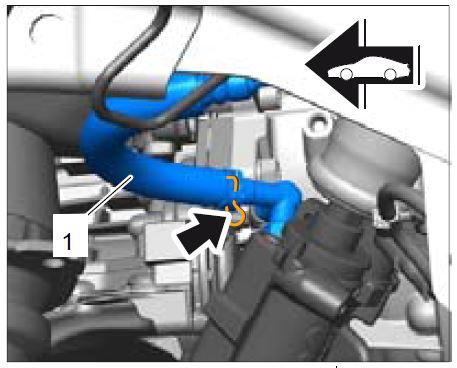

    Fig 32: Clutch Line
    G00556229
  30. Pull out the safety clip -arrow-  and disconnect the clutch line -1- .

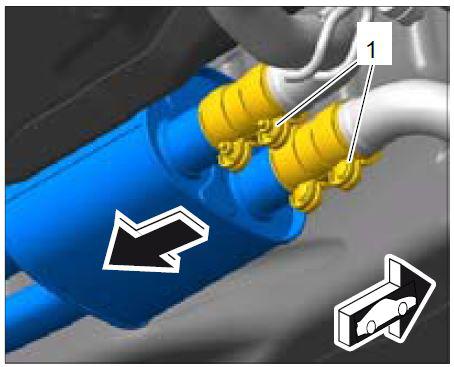

  31. Loosen connecting clamps -1- for the exhaust system and slide them to the rear.
    Fig 33: Exhaust System Connection Point
    G00556230

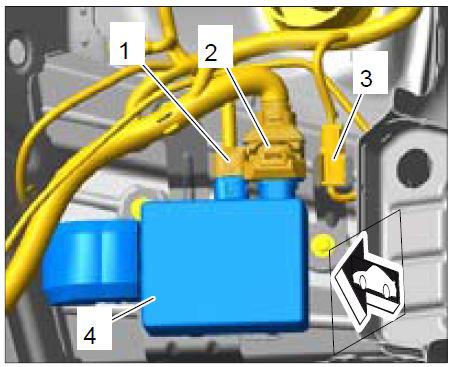

  32. Disconnect electric connectors -1, 2, 3- from control unit for electric transmission oil pump -4- and remove tie-wraps from the wire harness.
    Fig 34: Control Unit For Electric Transmission Oil Pump
    G00556231

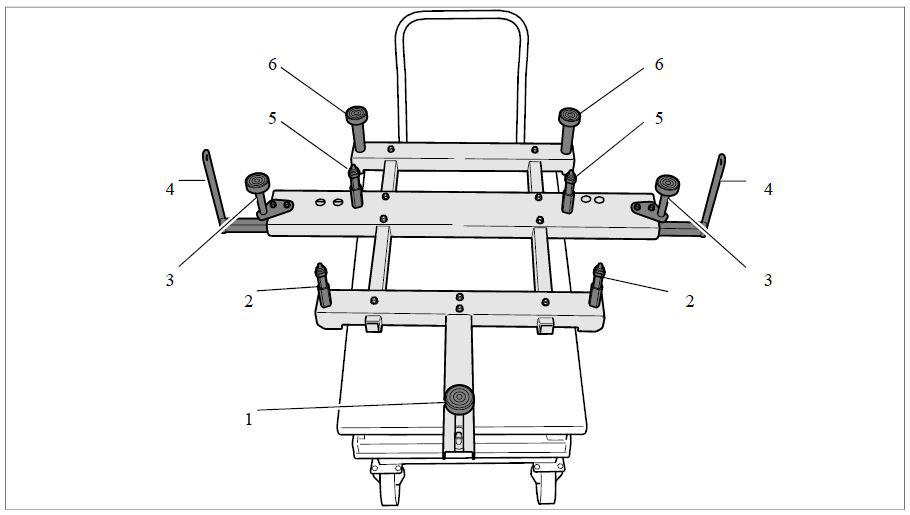

  33. Place lifting platform Master Gear unit elevating platform WE 1206  under the vehicle and move all assembly mandrels -1 to 6- to the same height at the correct position.
    Fig 35: Overview Of Assembly Mandrels
    G00556232
  34. Get the lifting platform ready and move it to the jacking points on the front axle (supporting frame and transmission mount). Set the heights of the mandrels and supports and ensure solid contact.
  35. Remove bolts on lower control arms.
    1. Raise the lifting platform slightly in order to relieve the pressure on the bolts on the lower control arm.
    2. Pull out bolt on the lower control arm -arrow-  on both sides.

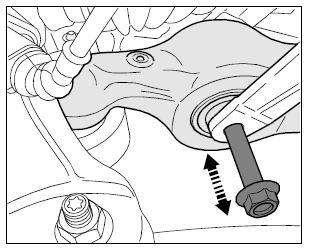

    Fig 36: Bolts On Lower Control Arm
    G00556233
  36. Remove the safety hooks -arrow-  for the upper control arm on both sides.

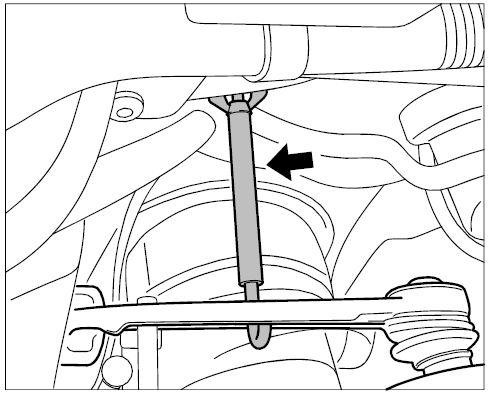

    Fig 37: Safety Hooks
    G00556234
  37. Detach front-axle carrier.

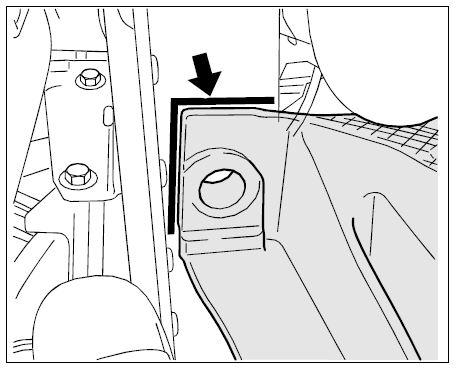

    Fig 38: Marking And Fastening Screws On Front-Axle Carrier
    G00556235
    1. Mark the position of the contact points of the front-axle carrier on the longitudinal members -arrow- on both sides.
    2. Remove fastening screws securing front-axle carrier to the longitudinal member on both sides.
  38. Remove fastening screws -arrows-  securing the anti-roll bar mount to the supporting plate on both sides.

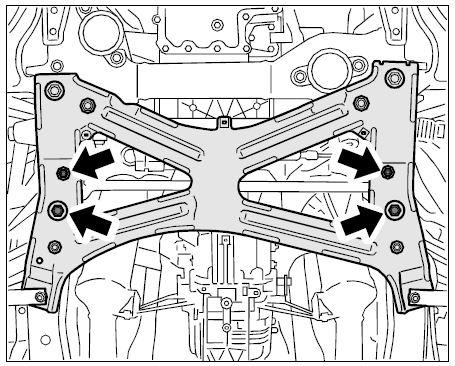

    Fig 39: Fastening Screws On Supporting Plate
    G00556236
  39. Remove transverse struts.

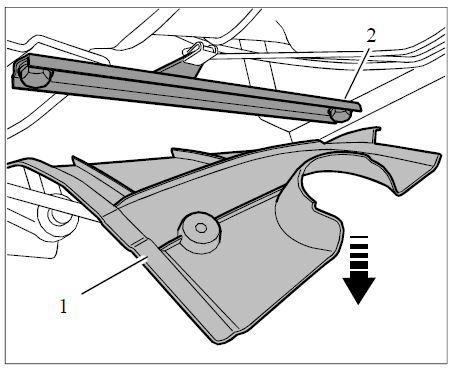

    Fig 40: Removing Struts (Right Side Shown Here)
    G00556237
    1. Right side: Press down rear wheel housing cover -1- ( -arrow- ). Remove the transverse strut -2- between the supporting plate and door sill.
    2. Left side: Remove transverse strut between the supporting plate and door sill.

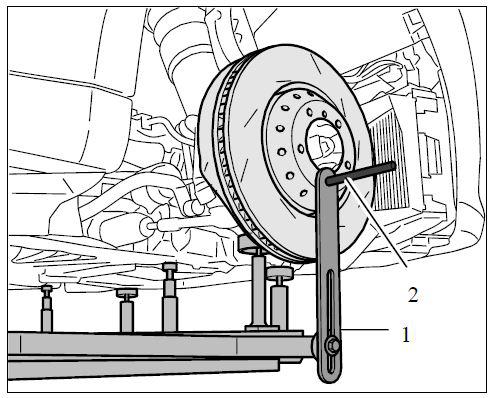

  40. Fit wheel hub holder -1- at both sides using assembly pins -2- on the wheel hub.
    Fig 41: Wheel Hub Holder (Shown Here On Steel Brake Disc)
    G00556238
  41. Remove fastening screws -arrows- on the rear transmission mount.

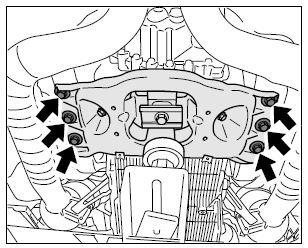

    Fig 42: Fastening Screws On Transmission Mount
    G00556239
  42. Remove the engine.
    1. Gradually lower the lifting platform Master Gear unit elevating platform WE 1206 and engine/transmission unit.
    2. Gradually guide the air-conditioning lines → Air-conditioning lines along with your hand.

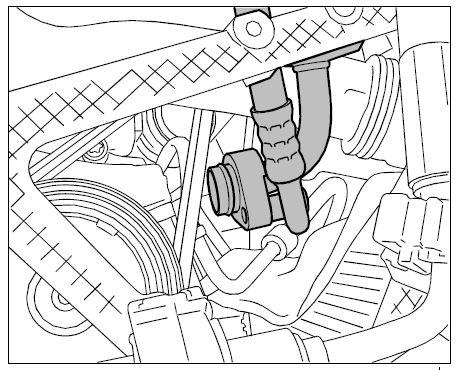

      Fig 43: Air-Conditioning Lines
      G00556240
    3. Move engine out from under the vehicle using the lifting platform.
