Removing Alarm Siren

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

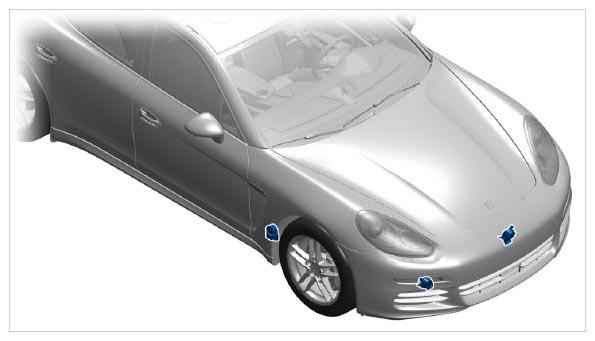

Fig 1: Identifying Horns

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

front right - Horn (low-pitched)

front center - Horn (high-pitched)

right side - Alarm siren

Loosen fastening screws -1- , -2- and remove retaining bracket with alarm siren -A- .

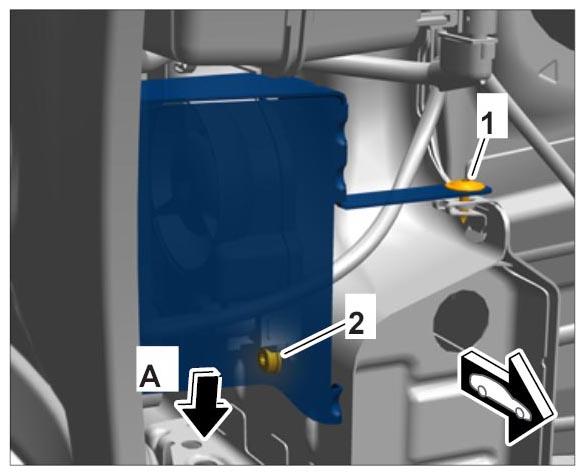

Fig 2: Removing Retaining Bracket For Alarm Siren
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the connector, make sure that the vehicle is unlocked. Otherwise, the alarm siren will be activated when you disconnect the connector.
Release and pull off electric connector -A- .
Loosen fastening nut -1- .

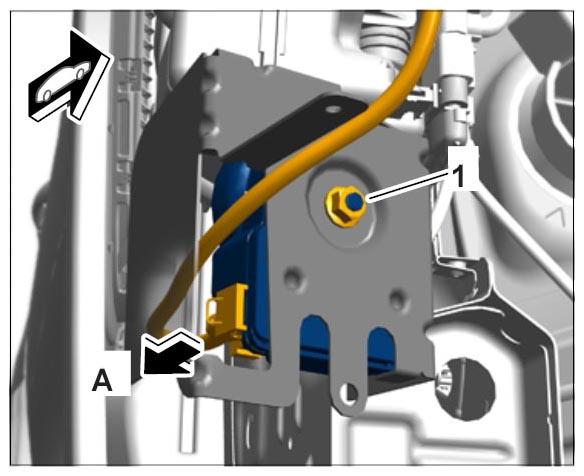

Fig 3: Loosening Fastening Nut To Remove Alarm Siren
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the alarm siren.
