Removing Glove Box Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Glove Box Light
G09814969Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip glove box light -A-  and remove it -B-  .

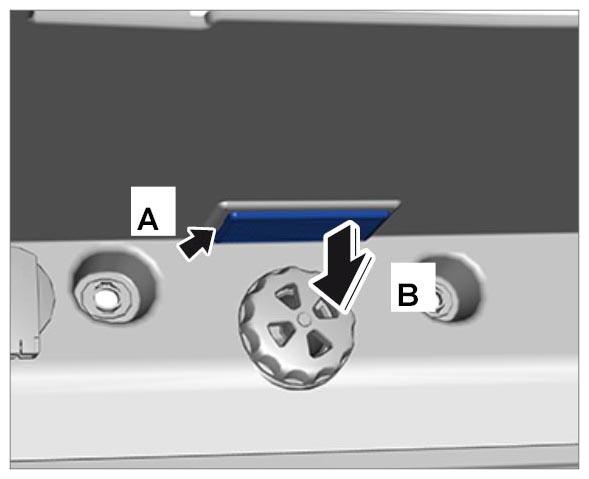

    Fig 2: Removing Glove Box Light
    G09814970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect plug connection.

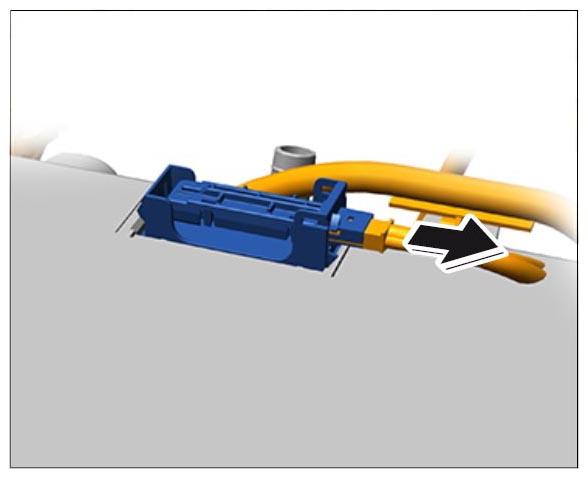

    Fig 3: Disconnecting Plug Connection
    G09814971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
