Removing Door Warning Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The work steps are described for the left rear door of the vehicle and must be performed in the same way on the other doors. Any different work steps are marked/highlighted.

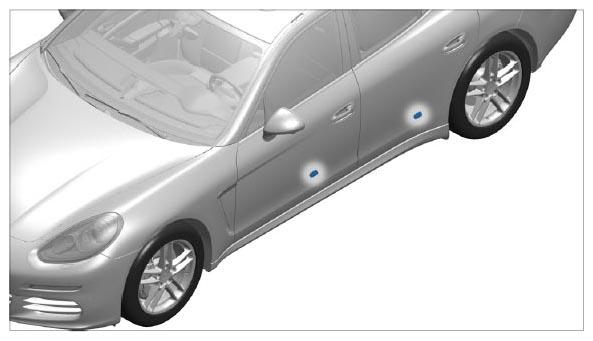

Fig 1: Identifying Door Warning Lights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip door warning light -A- and remove it -B- .

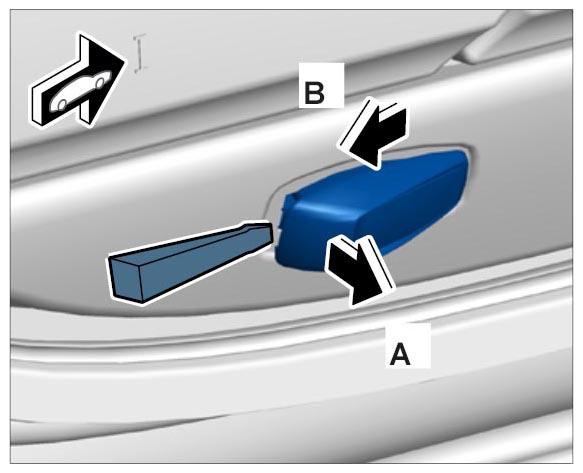

Fig 2: Unclipping Door Warning Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off connector.

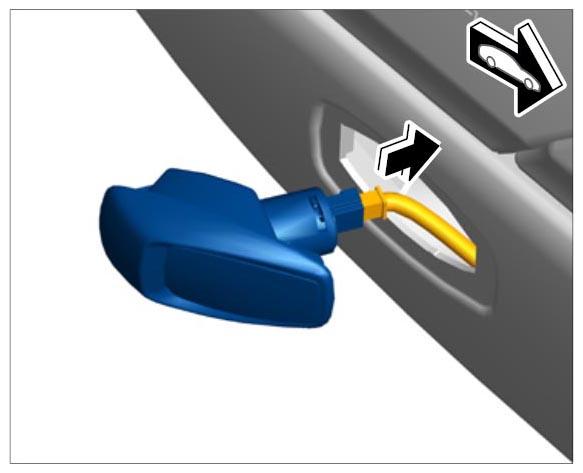

Fig 3: Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
