Removing Spreader Device (EPB Actuator)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

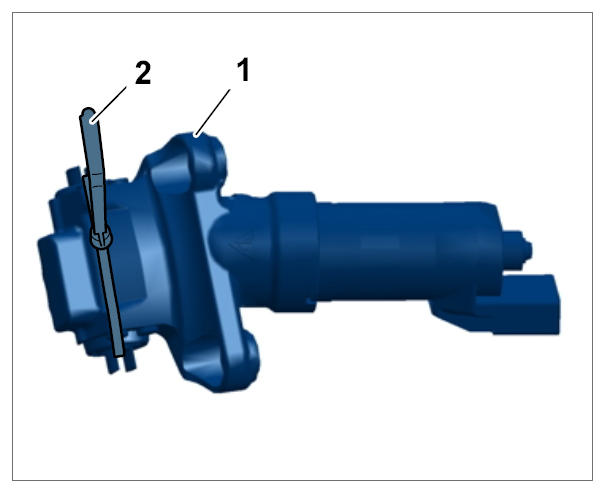

The spreader device (actuator) is fitted on the rear-axle wheel bearing housing

Actuator
Tie-wrap - prevents twisting

Fig 1: Identifying EPB Actuator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

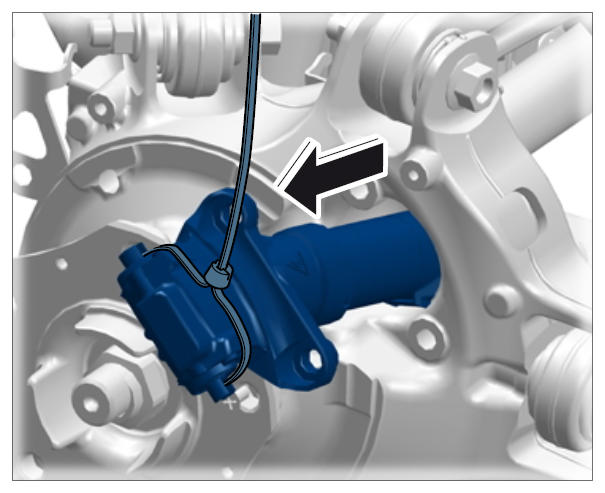

If the actuator has to be re-used, secure it in the brake shoe mountings with a tie-wrap to prevent it from twisting! -arrow-

Fig 2: Locating Servo Motor Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

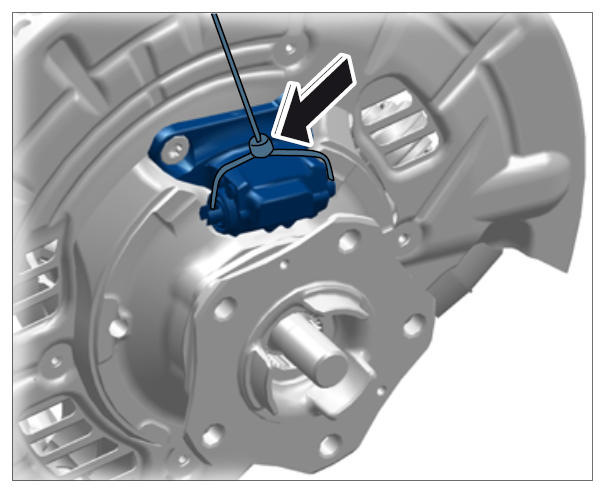

Carefully disconnect electric connector at the actuator and pull it off.

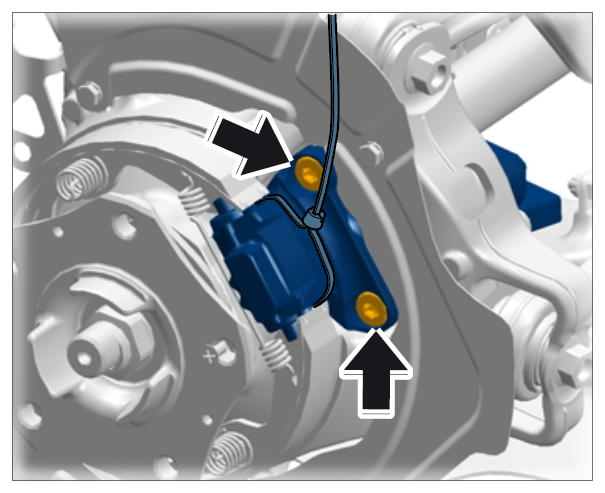

Loosen fastening screws -arrows- on the actuator.

Fig 3: Locating Actuator Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the wheel hub so that the actuator can be removed carefully. → Removing actuator

Fig 4: Removing Actuator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
