Removing Brake Shoes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Brake shoes
Adjustment device
Compression springs
Tension springs

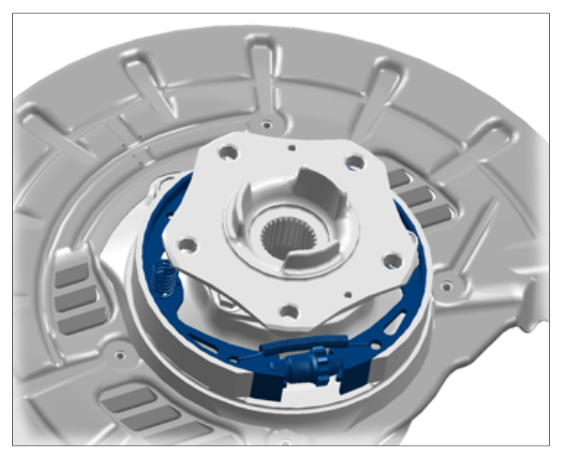

Fig 1: Component Overview For Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen adjustment device -2- with a screwdriver. → Adjustment device

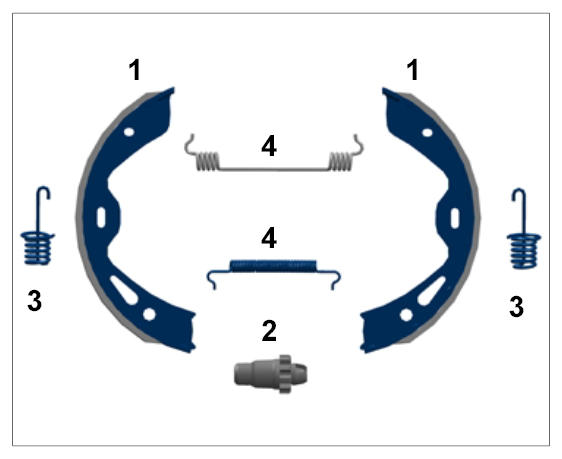

Fig 2: Identifying Adjustment Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.
Remove compression springs -3- . → Compression springs

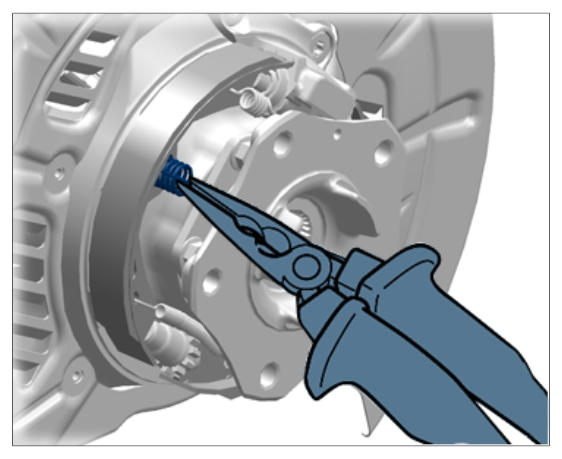

Fig 3: Removing Compression Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage both tension springs -4- . → Tension springs

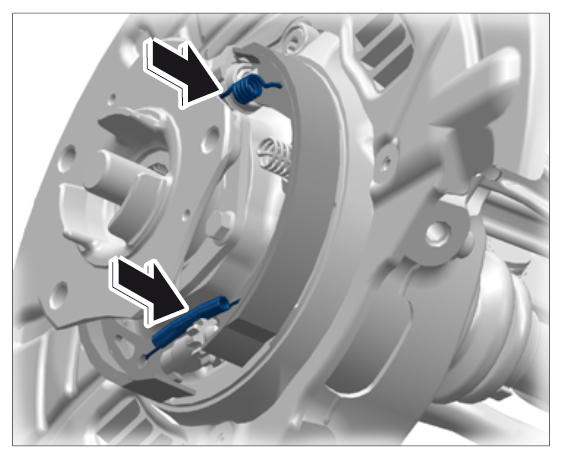

Fig 4: Locating Tension Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove brake shoes using adjustment device -1 and 2- .
Secure actuator for parking brake with a tie-wrap -arrow- .

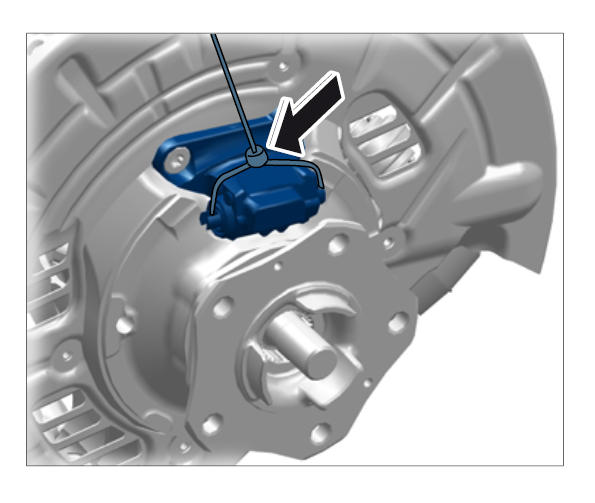

Fig 5: Locating Servo Motor
