Installing Brake Shoes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

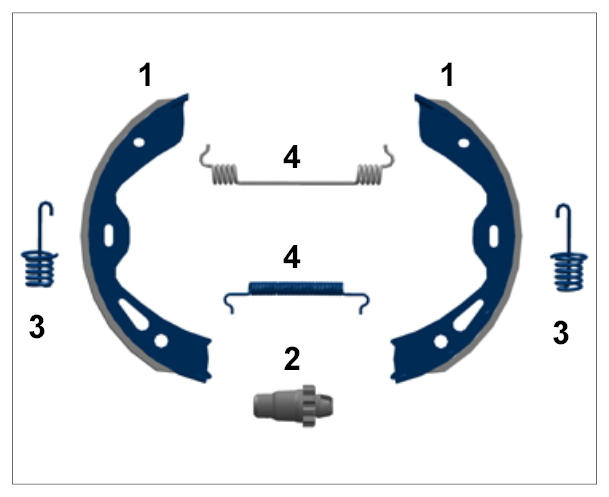

Brake shoes
Adjustment device
Compression springs
Tension springs

Fig 1: Component Overview For Foot-Operated Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove tie-wrap -arrow- on the parking brake actuator.

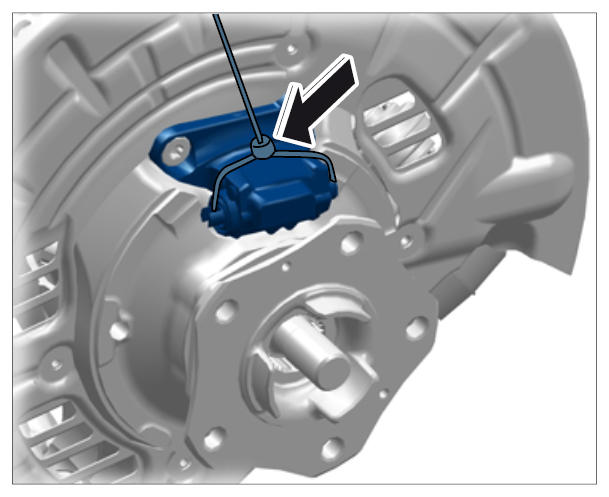

Fig 2: Locating Servo Motor Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Align the entire unit in the middle.
Insert brake shoes with adjustment device -1 and 2- .
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.
Engage both tension springs -4- . → Tension springs

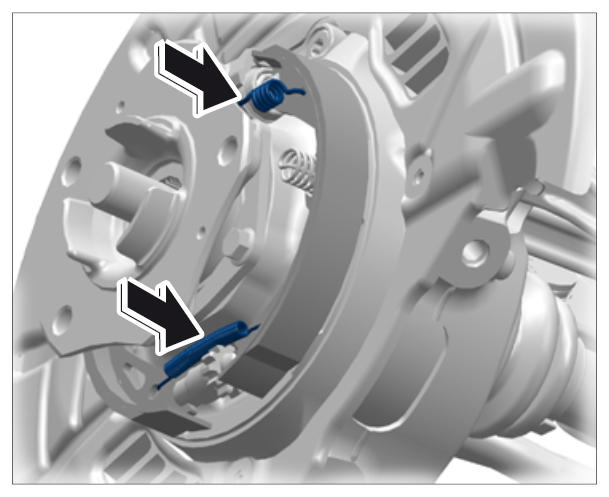

Fig 3: Locating Tension Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install compression springs -3- .
1. 4.1. Disconnect connector for speed sensor and use a torch to check (visual inspection) that the compression spring -arrow- is engaged.

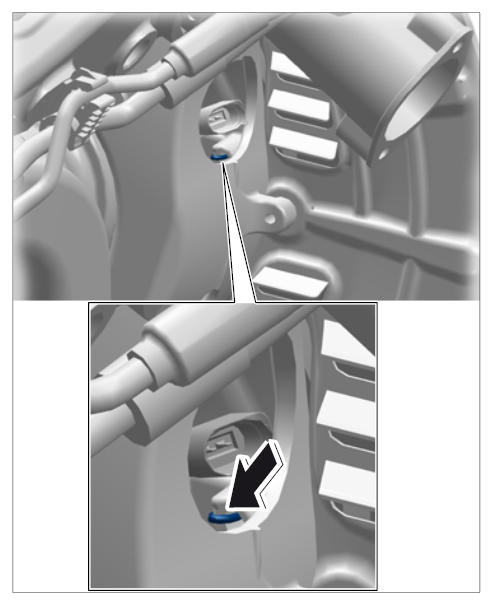

  Fig 4: Locating Compression Spring Next To Speed Sensor Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Plug in connector on speed sensor again.
3. 4.3. Illuminate the cut-out behind the brake disc using a torch and check (visual inspection) that the compression spring -arrow- is engaged.

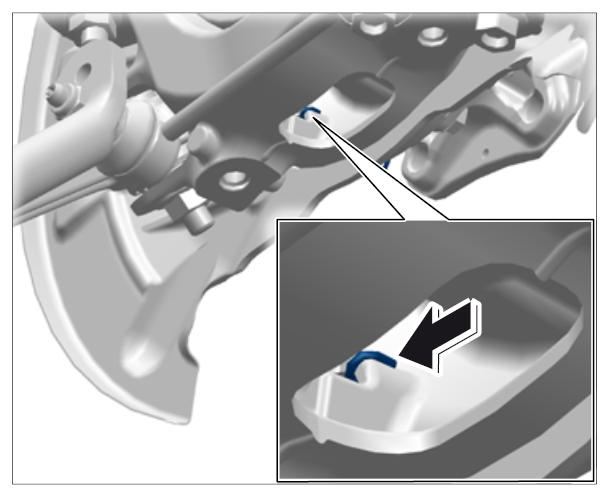

  Fig 5: Locating Compression Spring Behind Brake Calliper
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
