Removing Rear Brake Disc

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Connect and start the Porsche System Tester.
1. 1.1. Select parking brake.
2. 1.2. Select Maintenance/repairs.
3. 1.3. Move to installation position.

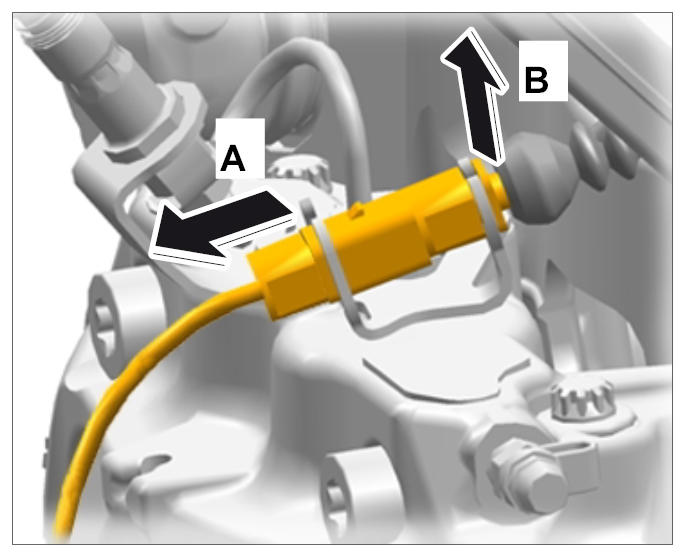

Release and unclip the connector for the brake pad wear indicator -A- and remove it from the holder -B- .

Fig 1: Disconnecting Connection For Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

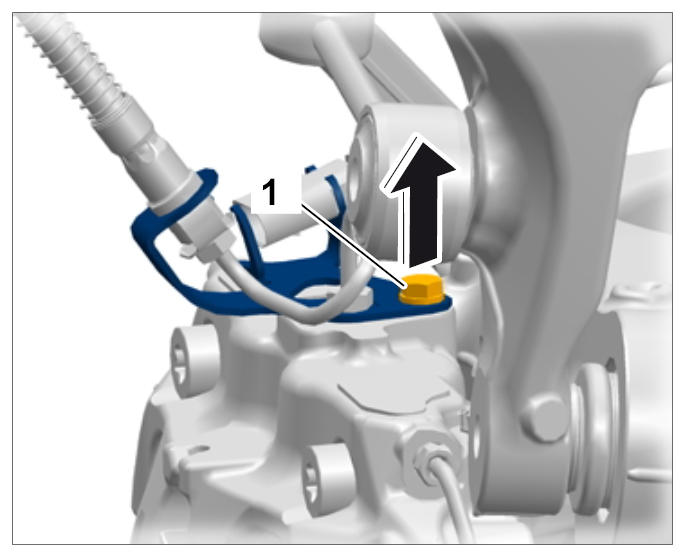

Loosen fastening screw -1- on the holder for the brake pad wear indicator cable and brake line from the brake calliper.

Fig 2: Identifying Brake Line Holder With Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Removal of brake calliper
- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.

→ Protect brake calliper from paint defects using a suitable cloth.
Evenly set back brake pads a little using water pump pliers.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.

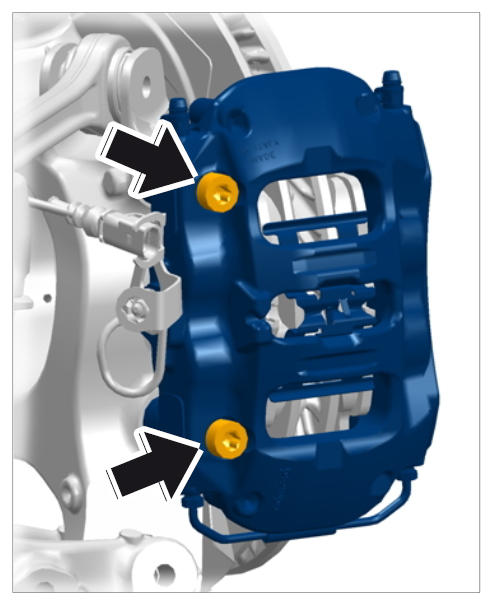

Loosen fastening screws on the brake calliper -arrows- and remove brake calliper from the wheel bearing housing.

Fig 3: Locating Brake Disc Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Suspend the brake calliper at a suitable position in the wheel housing (do not open the brake hydraulic system!).

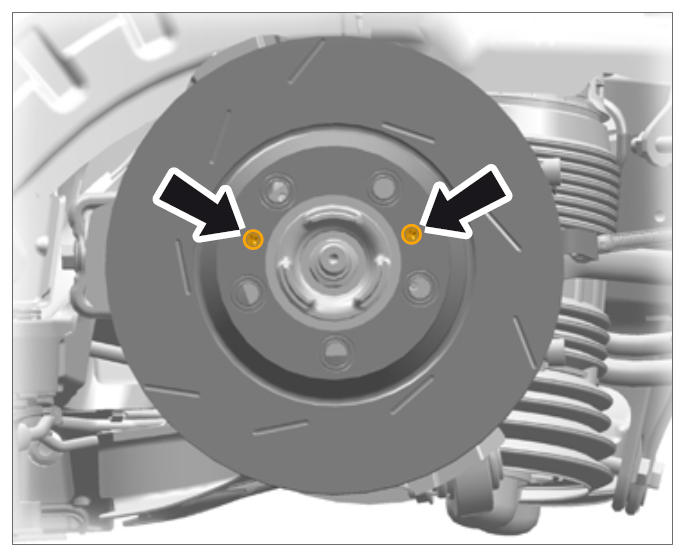

Loosen fastening screws -arrows- and remove brake disc.

Fig 4: Locating Brake Calliper Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
