Explanation Of 2-Part Brake Disc

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1- is screwed to the brake disc hub -2- with 10 screws (M6) -3- .
Only the complete brake disc is available as a spare part (disc + brake disc hub)!
Do not separate the brake disc hub -2- and brake disc -1- .
Do not attempt to turn the screws -3- . The screws are prevented from turning by compression in the bush.
Changing the tightening torque of the screws -3- will have negative effects on the noise produced.

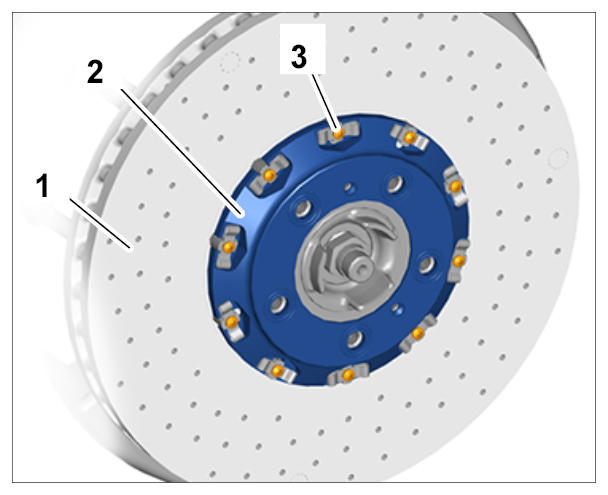

Fig 1: Identifying 2-Part Brake Disc
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
