Basic Information

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Checking involves the following tasks:

Visual inspection for surface changes in the brake disc friction surfaces and wear indicators. Indication of wear: Connected surface fracture > 1 cm²-arrow- , without adding up smaller fractures → Checking PCCB Brake Discs (Wear Assessment) .

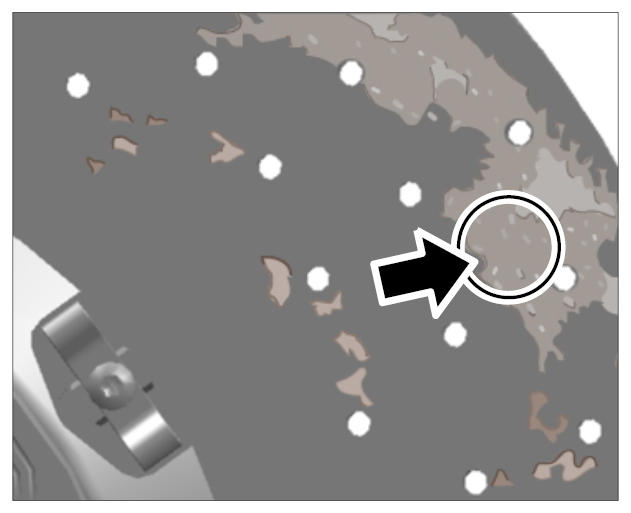

Fig 1: Locating Associated Surface Fracture
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check surface roughness (Rk) of brake discs (max. 80 μm permitted) since this affects braking comfort (noises), braking behavior/pedal pressure and brake pad service life → Checking PCCB Brake Discs (Wear Assessment) .

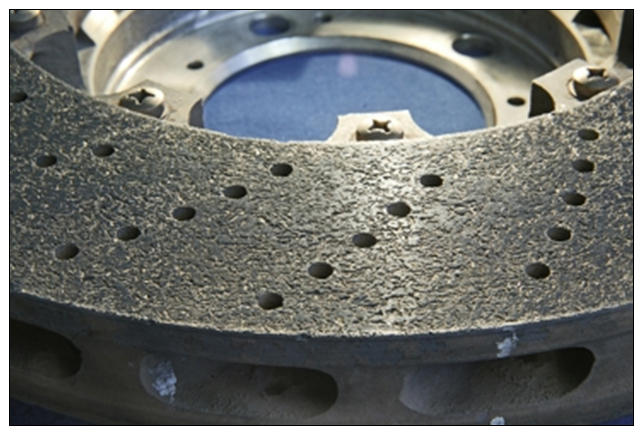

Fig 2: Identifying Surface Roughness Of PCCB Brake Disc
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check brake discs for minimum thickness -X- . The minimum thickness of the brake disc (example: Min. Th. 37.7 mm) is stamped on the brake disc hub → Checking PCCB Brake Discs (Wear Assessment) .

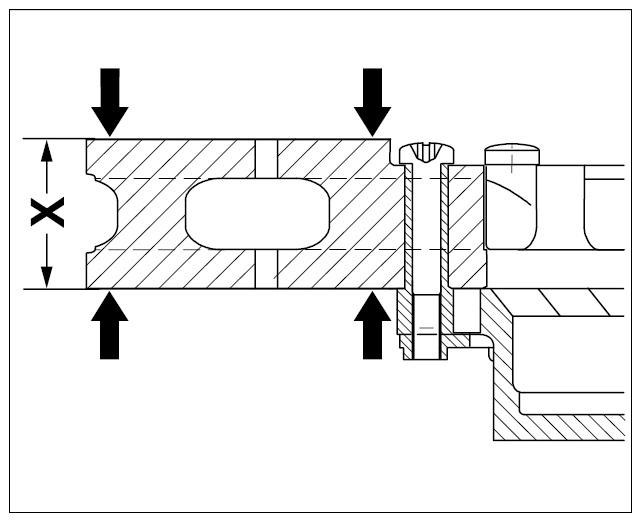

Fig 3: Locating Minimum Thickness -X- Of PCCB Brake Disc
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check brake discs for edge damage → Edge damage on PCCB brake disc (damage due to improper use) → Checking PCCB Brake Discs (Wear Assessment) .

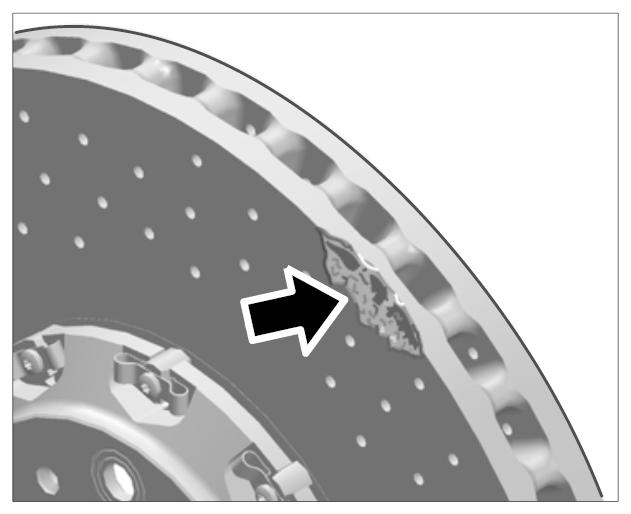

Fig 4: Locating Edge Damage On PCCB Brake Disc
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
