Preliminary Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove brake light switch → 943619 REMOVING AND INSTALLING BRAKE LIGHT SWITCH .
  2. Disengage push rod -1-  .
    1. 2.1. Unlocking tool 9767 -2-  must be guided from below into the pressure piece -3-  in front of the ball joint on the push rod -1-  .
    2. 2.2. Fit unlocking tool -2-  at the bottom of the crash support -5-  .
    3. 2.3. Press lever on unlocking tool forward to separate the pressure piece -3-  from the ball joint on the push rod -1-  .
    4. 2.4. Touch the brake pedal -4-  gently to release the push rod -1-  and then pull it back again.

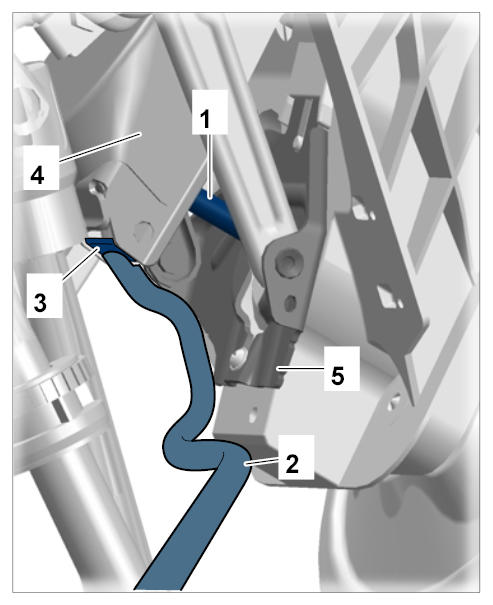

      5. Fig 1: Pressing Out Push Rod
      G09807952Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove steering column → 481519 REMOVING AND INSTALLING STEERING COLUMN .
