Installing Door Panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually examine the rubber supports to check that they are complete and are seated correctly.

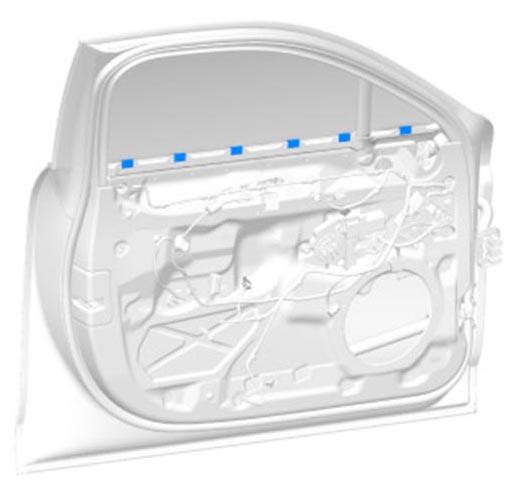

    Fig 1: Checking Rubber Supports
    G09812299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure cable for door opener.
    1. 2.1. Fit the driver -A-  .
    2. 2.2. Swivel in cable -B-  .
    3. 2.3. Guide clip for cable into the guide -2-  (-C-  ) until it engages securely.

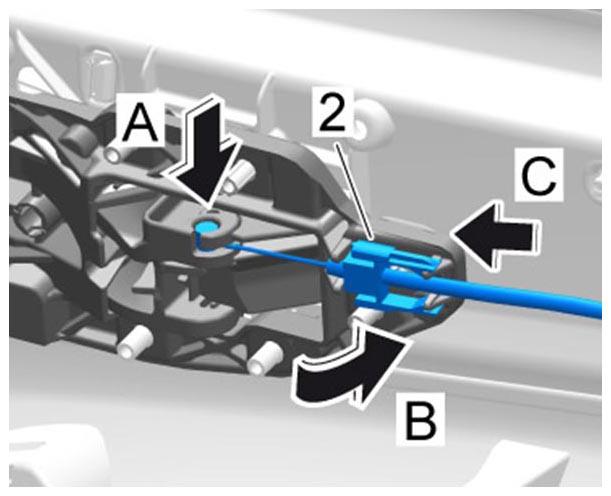

    Fig 2: Securing Cable For Door Opener
    G09812300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install door panel.
    1. 3.1. Fit door panel and guide it down into the brackets -arrow-  .
    2. 3.2. Tighten fastening screws -1-  for the door panel to the specified tightening torque Tightening torque 7.5 Nm  until secure.
    3. 3.3. Install door warning light. → INSTALLING DOOR WARNING LIGHT
    4. 3.4. Close the storage compartment.

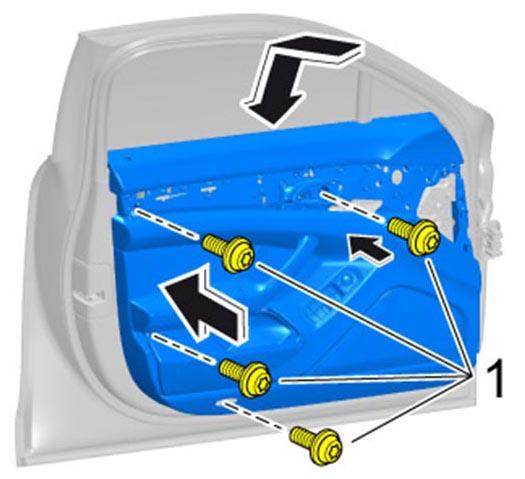

      5. Fig 3: Installing Door Panel
      G09812301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Insert wire harness for door panel.
  5. Connect plug connection -A-  and lock it using the locking mechanism -a-  .
    1. 5.1. Check that the locking mechanism is fitted securely.
    2. 5.2. Connect plug connection -B-  until it engages securely.

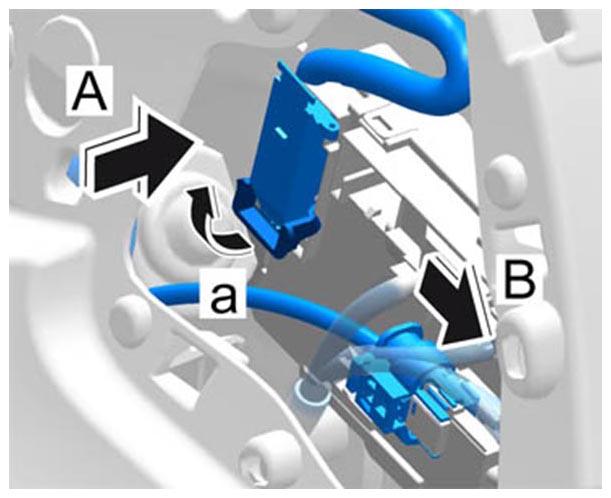

    Fig 4: Inserting Wire Harness For Door Panel
    G09812302Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install cover for door opener.
    1. 6.1. Pull up door opener -A-  .
    2. 6.2. Fit cover on door opener at the rear -B-  and clip it in by pushing it forward -C-  .

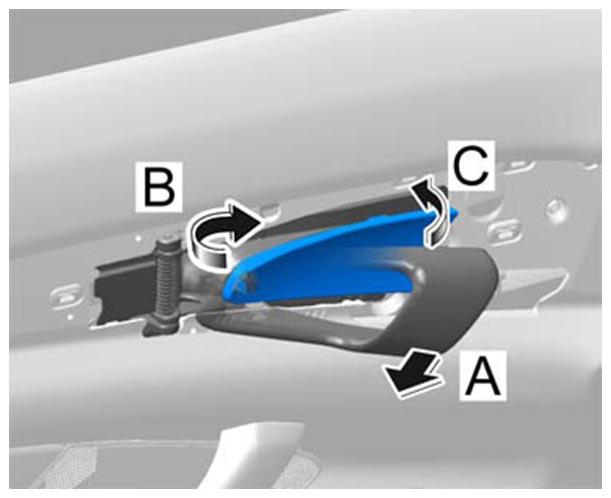

    Fig 5: Clipping In Cover For Door Opener
    G09812303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
