Preparing Rear Cross Member For Installation

  1. Fit in rear cross member.
  2. Prepare rear cross member for bonding and welding.

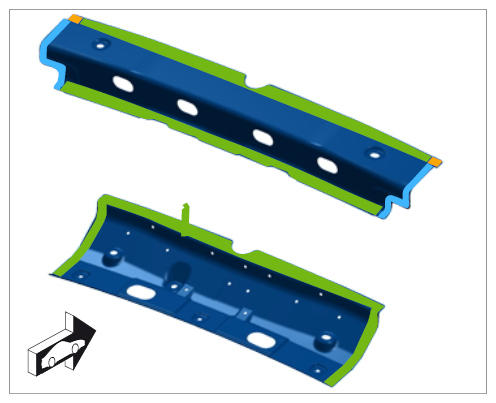

    Fig 1: Identifying Rear Cross Member
    G10030671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding
    Blue Bonding
    Orange Bonding + resistance spot-welding
