Installing Cross Panel

  1. Installation is performed in reverse order to removal.
    1. 1.1. Position seal for cross panel.

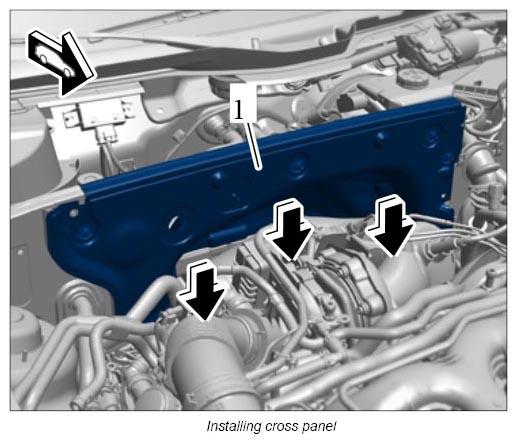

    2. 1.2. Make sure that the cross panel -1-  engages in the guides during installation.
      G12889279Courtesy of PORSCHE CARS NORTH AMERICA, INC.
