Preparing Front Side Member (Section) For Installation

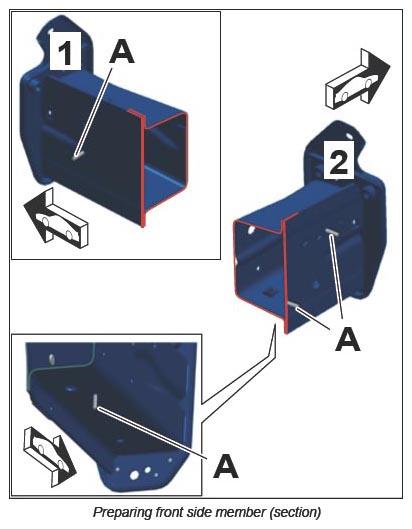

  1. Remove studs -A-  from the left section of the longitudinal member -1 -  and right section of the longitudinal member -2-  .
    1. 1.1. Prepare front side member (section) for welding.
      G12889271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
