WM 506055 Replacing Headlight Mounting: Tools

Designation Type Number Description

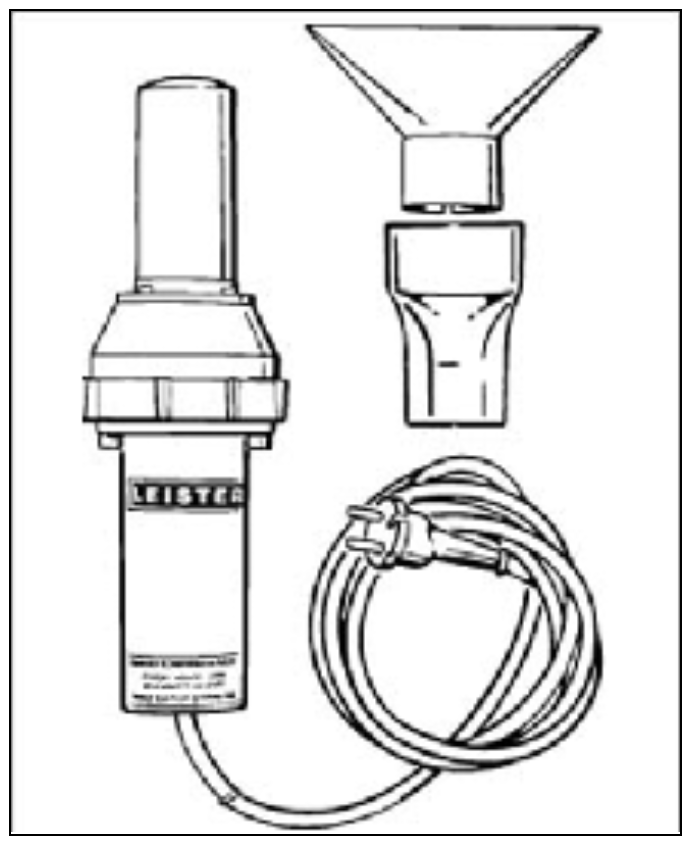

Hot-air blower Workshop equipment WE 1119
G12889053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

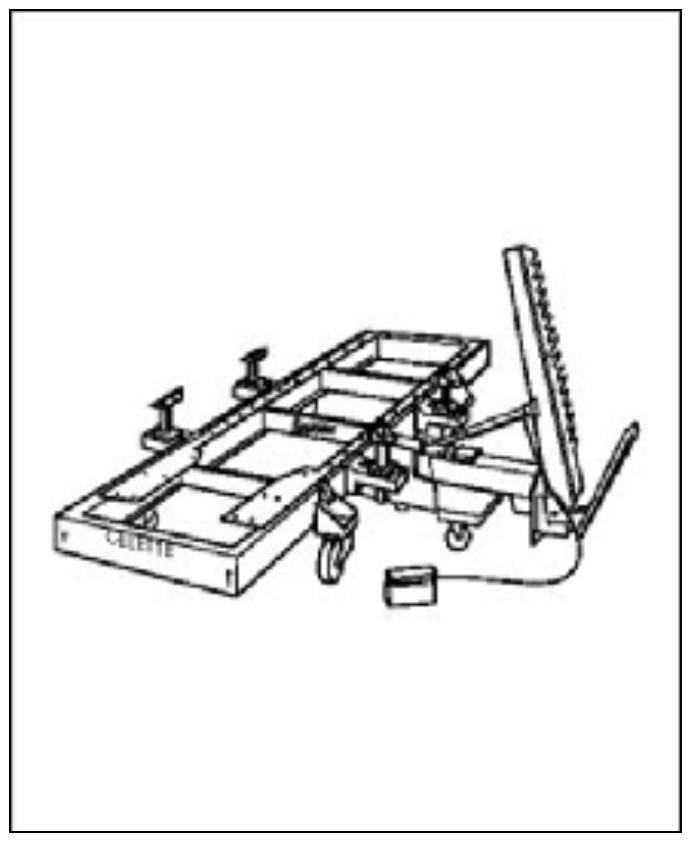

Body alignment system package Workshop equipment WE 1121
G12889054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

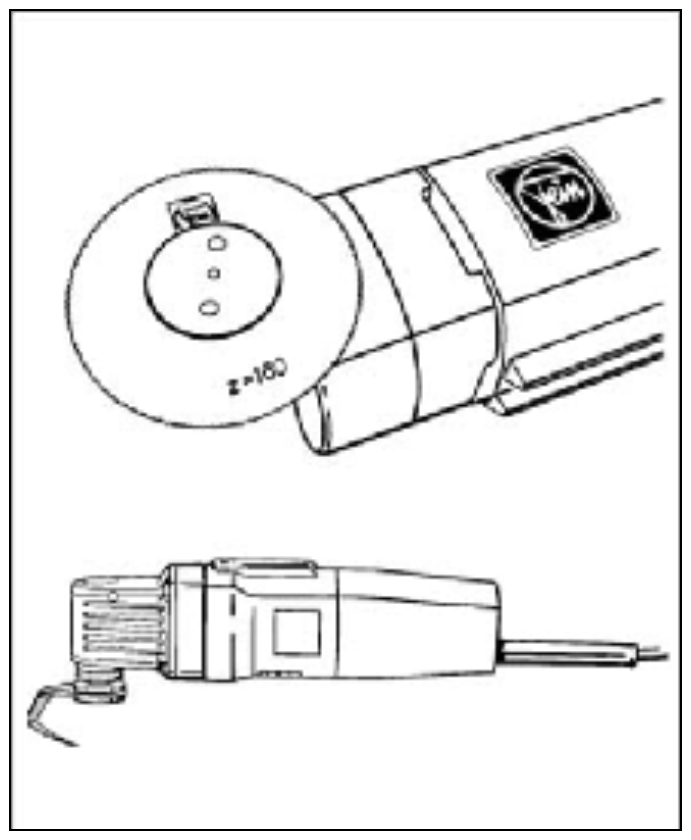

Special electric cutter Workshop equipment we 1137
G12889055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

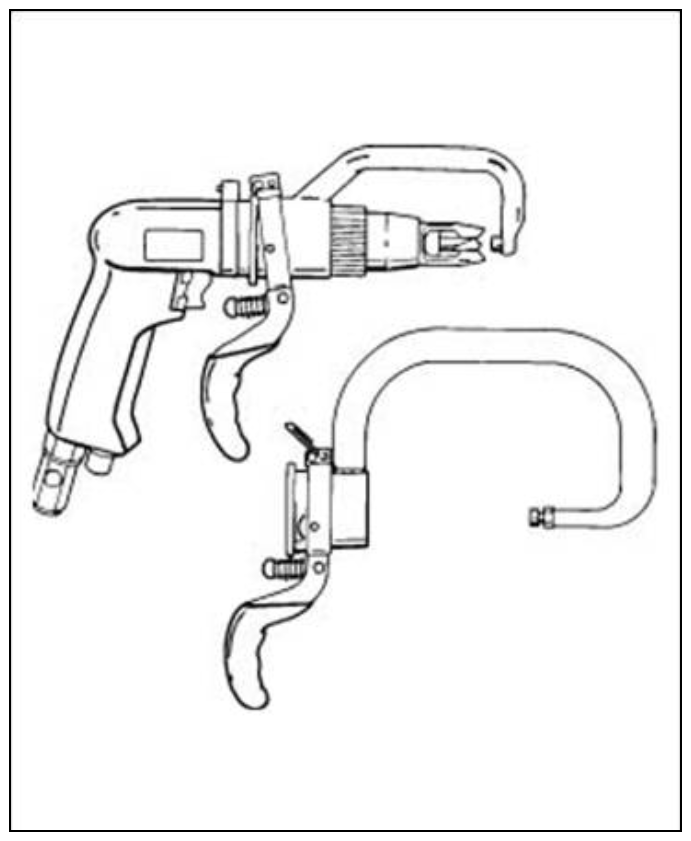

Pneumatic Spotweld Remover, Vario Drill WS 90 Workshop equipment WE 1139
G12889056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

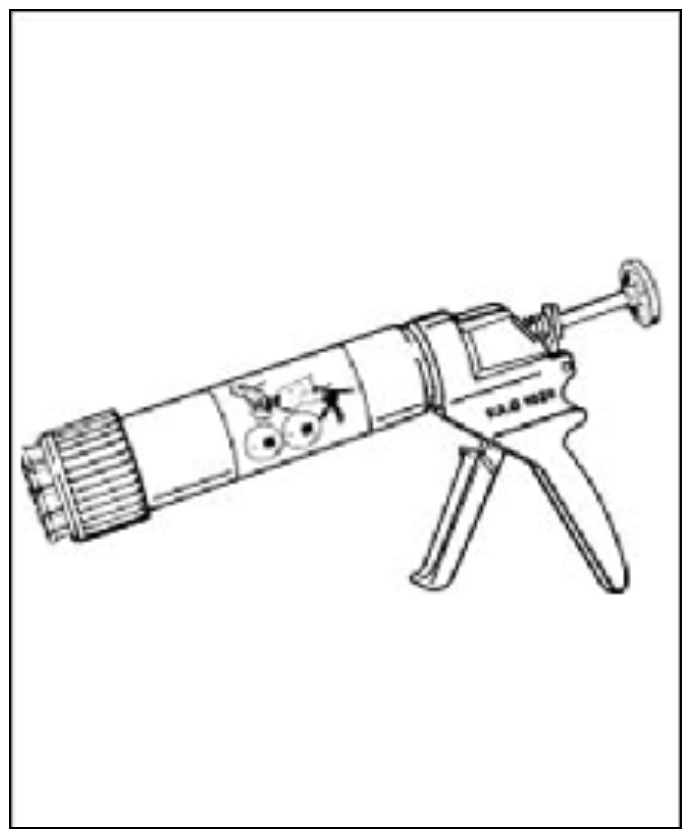

Hand-cartridge gun Workshop equipment WE 1141
G12889057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

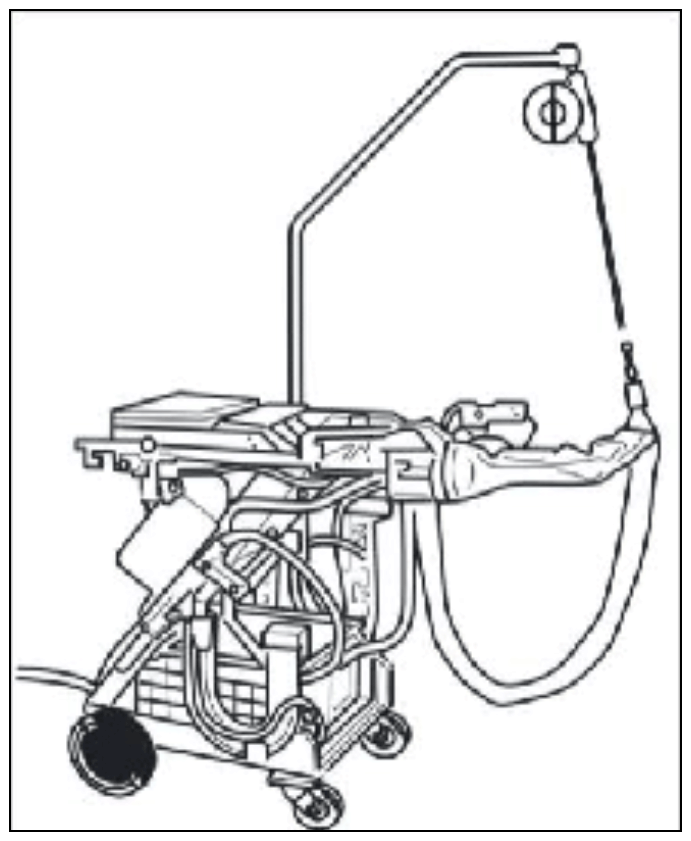

Resistance spot welder Workshop equipment WE 1311
G12889058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

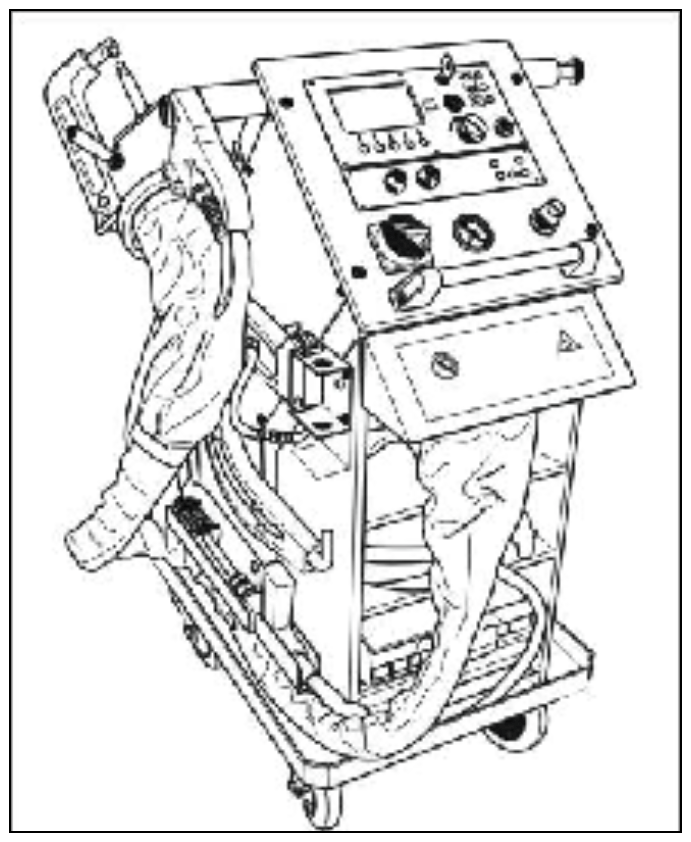

Inverter welder MIDIspot-QSVM-12000 Workshop equipment WE 1312
G12889059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

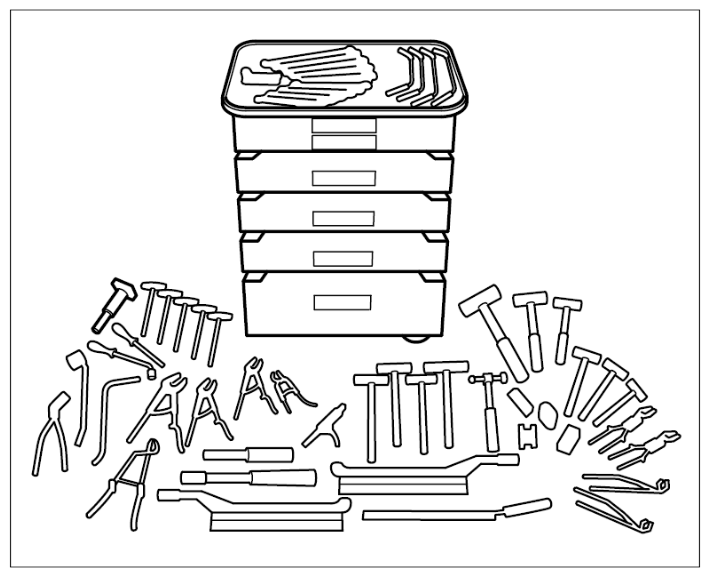

Aluminum tool set with trolley Workshop equipment WE 1350
G12889060Courtesy of PORSCHE CARS NORTH AMERICA, INC.

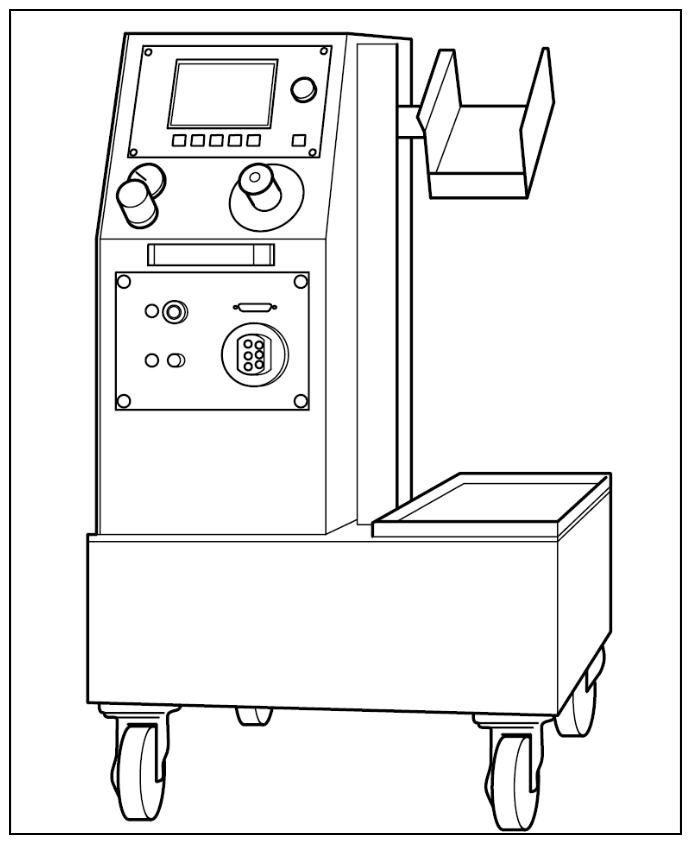

Resistance spot welder Workshop equipment WE 1352
G12889061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

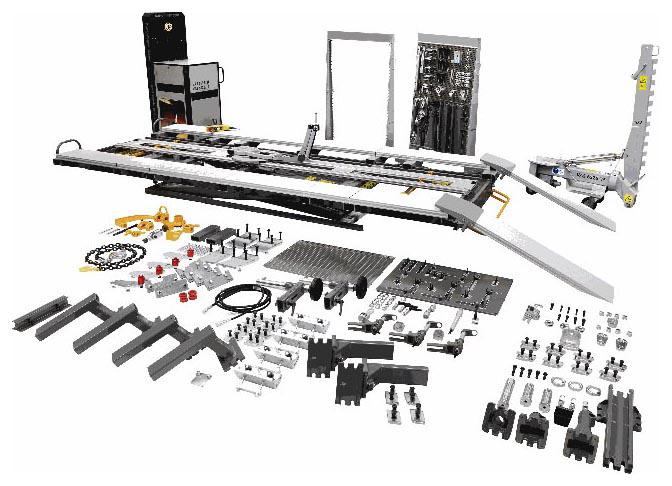

Measuring and alignment system, professional Workshop equipment WE 1398
G12889062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

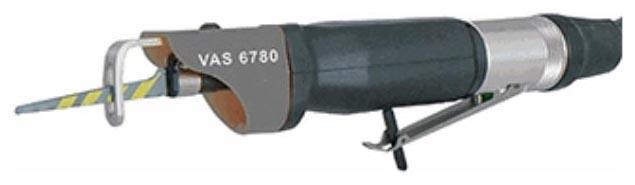

Body saw Workshop equipment WE 1508
G12889063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

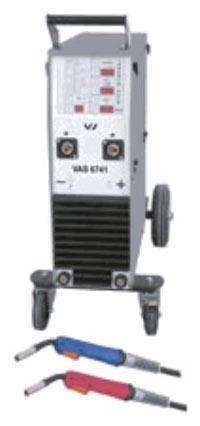

Welding and brazing system MIG/MAG Workshop equipment WE 1518
G12889064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

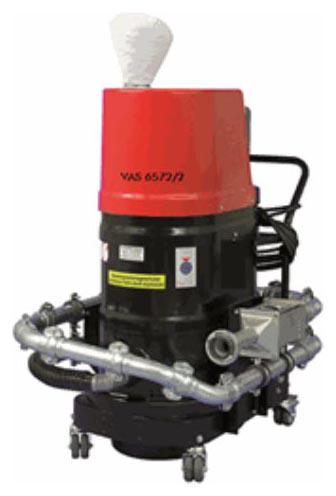

Exhaust extraction system Workshop equipment WE 1668
G12889065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

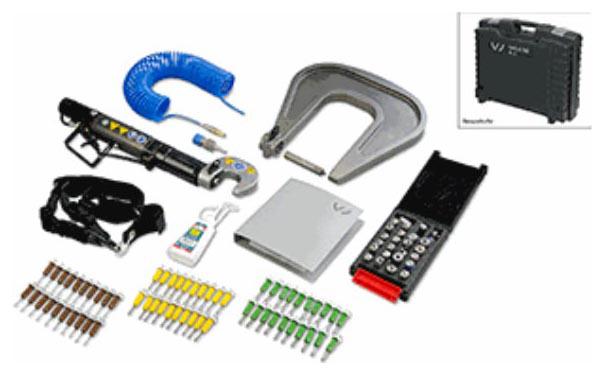

Compact booster Workshop equipment WE 1670
G12889066Courtesy of PORSCHE CARS NORTH AMERICA, INC.

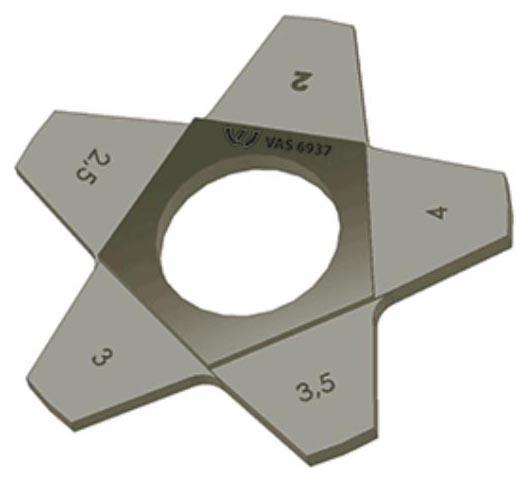

Setting gauge Workshop equipment WE 1690
G12889067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

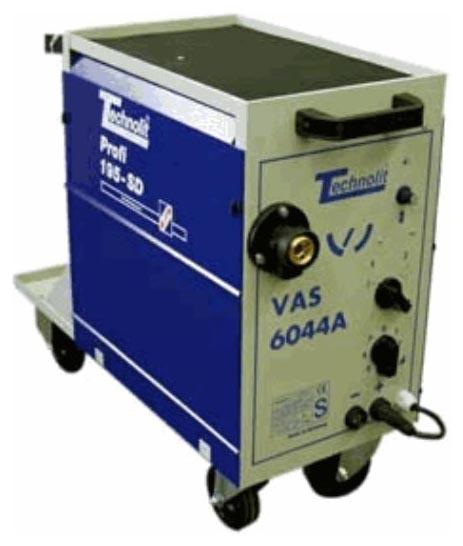

Shielded arc welding equipment Workshop equipment WE 1699
G12889068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

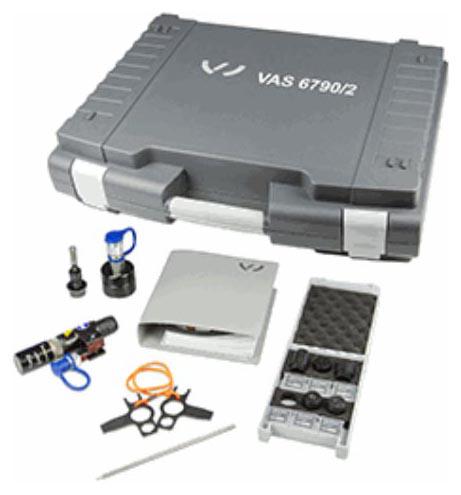

Supplementary riveting set Workshop equipment WE 1703
G12889069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

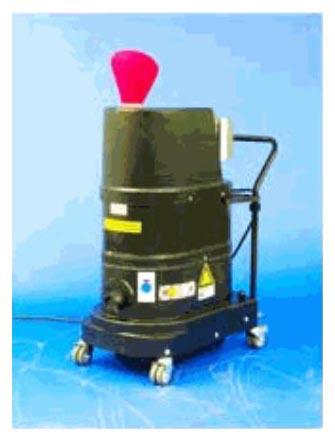

Mobile extraction unit, steel Workshop equipment WE 1704
G12889070Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Setting gauge, 4.5 - 6.5 Workshop equipment WE 1724
G12889071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Setting gauge 7 - 9 Workshop equipment WE 1725
G12889072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

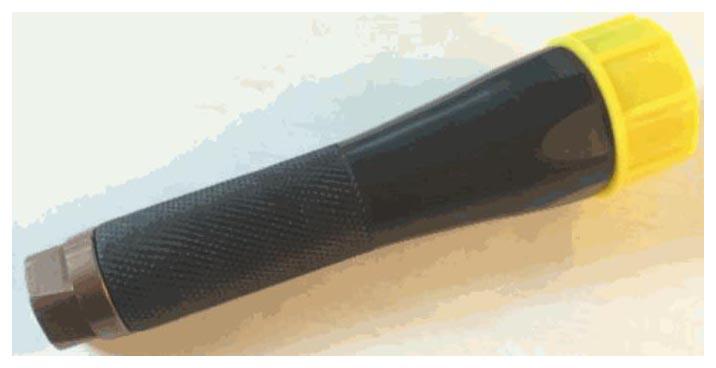

Extension for rivet attachment, Compact booster Workshop equipment WE 1728
G12889073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Countersink Workshop equipment WE 1729
G12889074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

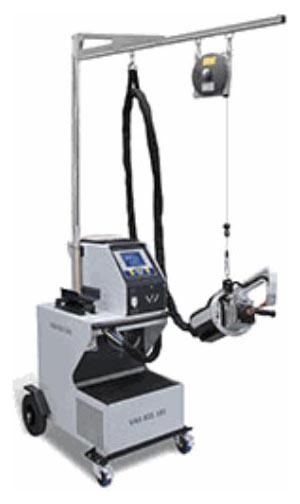

Resistance spot welder Workshop equipment WE 1743
G12889075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

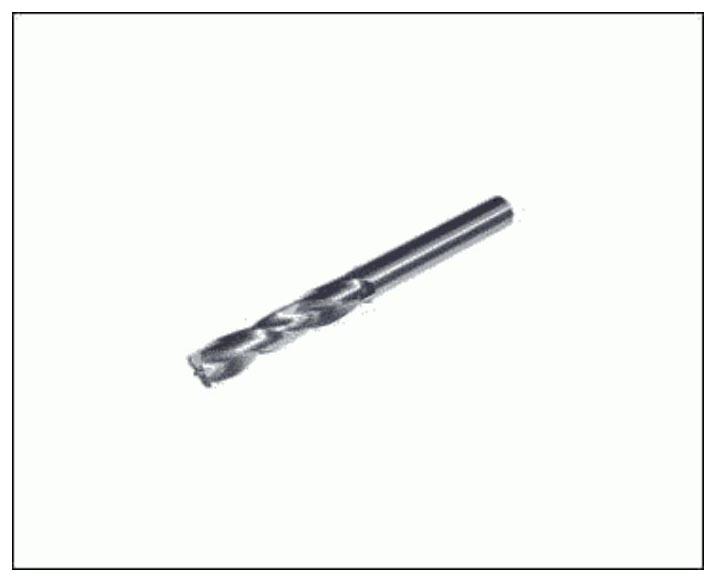

Spotweld drill bit Commercially available tool Nr.129
G12889076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
