Removing Headlight Mounting

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

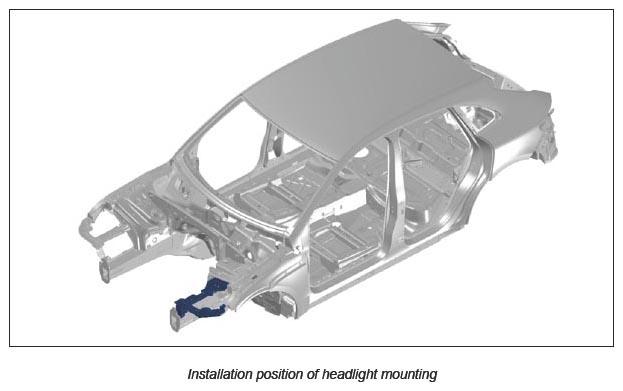

Fig 1: Headlight Mounting Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

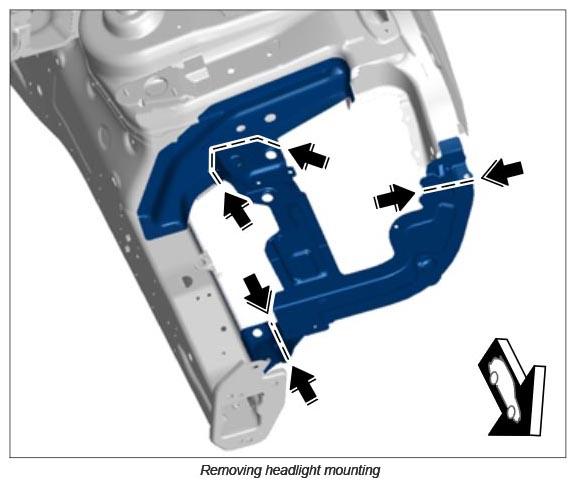

1. Roughly cut out headlight mounting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

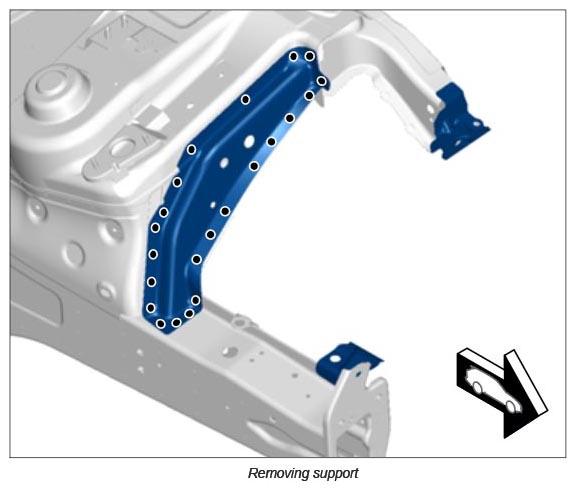

2. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

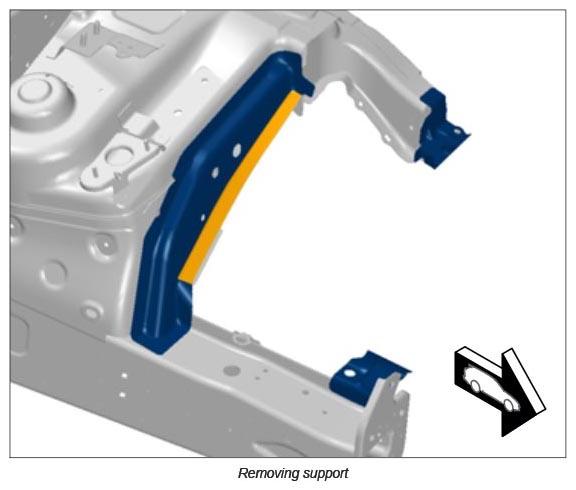

3. Heat the marked bonding surfaces. 3.1. Remove support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

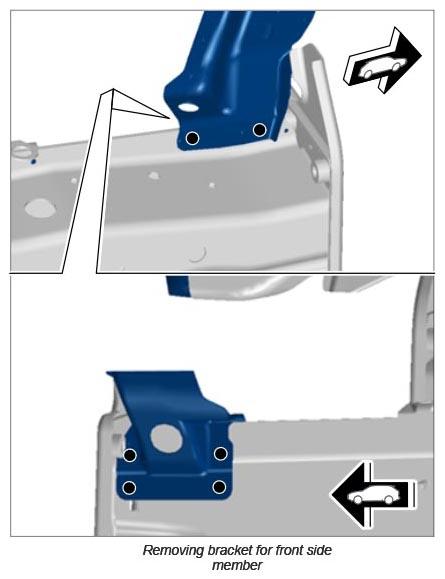

4. Remove bracket for front side member.

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

   1. 4.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   2. 4.2. Remove remaining pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

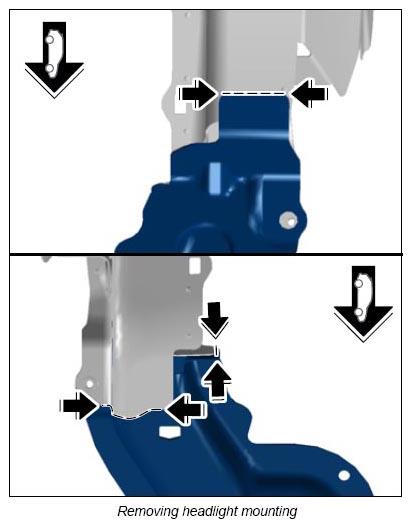

5. Remove headlight mounting.

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

   1. 5.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   2. 5.2. Remove welded seams.
   3. 5.3. Remove remaining pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
