Preparing Headlight Mounting For Installation

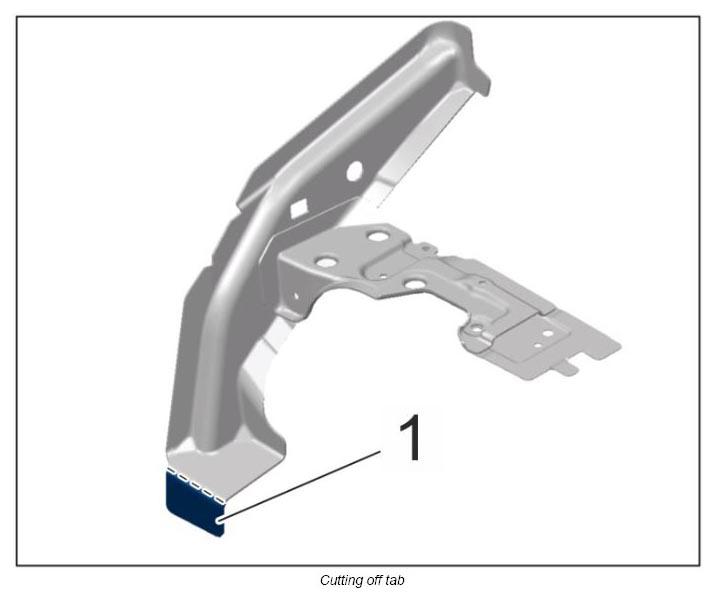

Cut off tab at the bottom of the new part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit in support and secure it to the body.

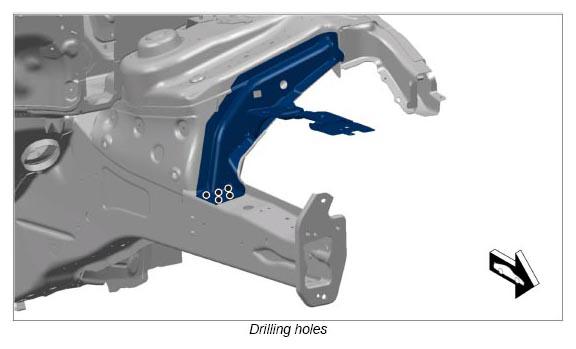

Drill holes for blind rivets. → Diameter: 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove support.

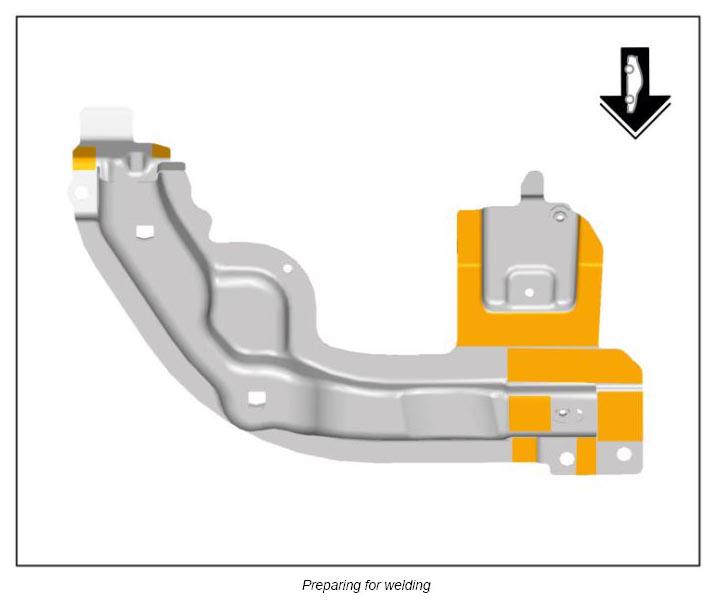

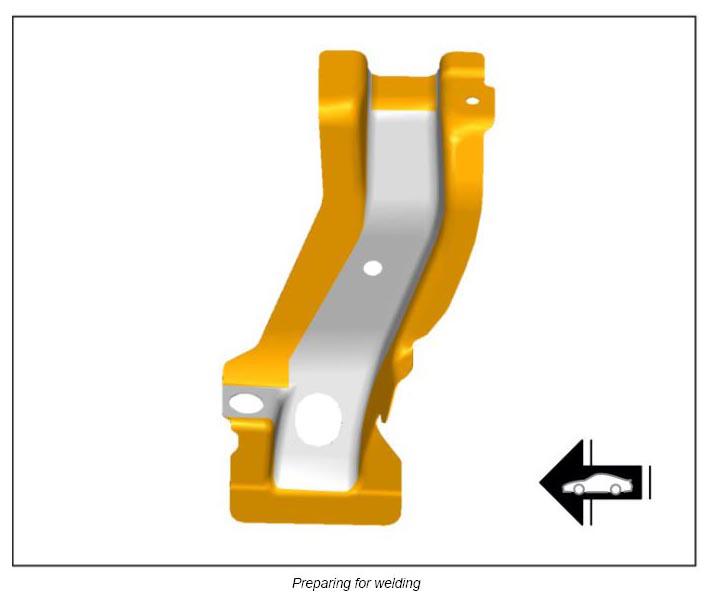

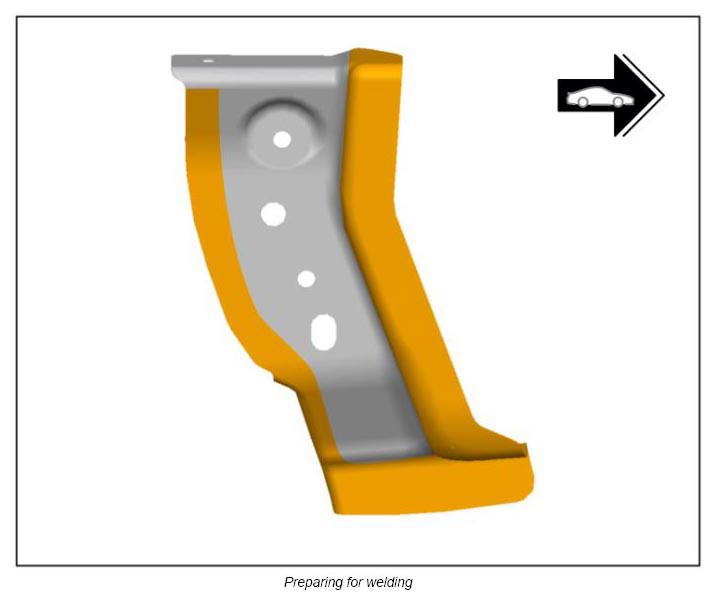

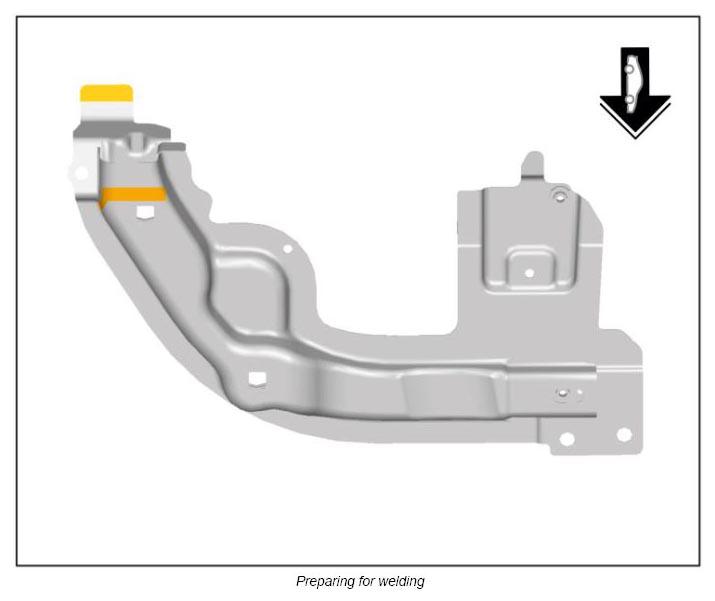

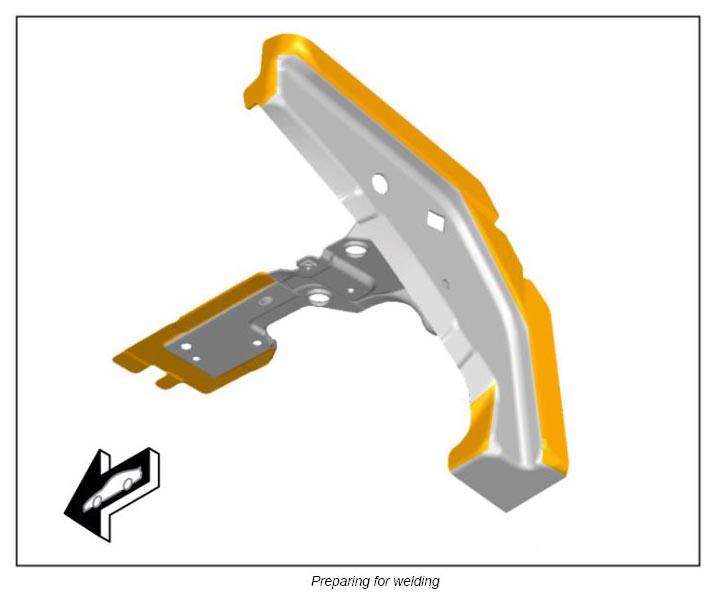

Prepare connection areas for welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

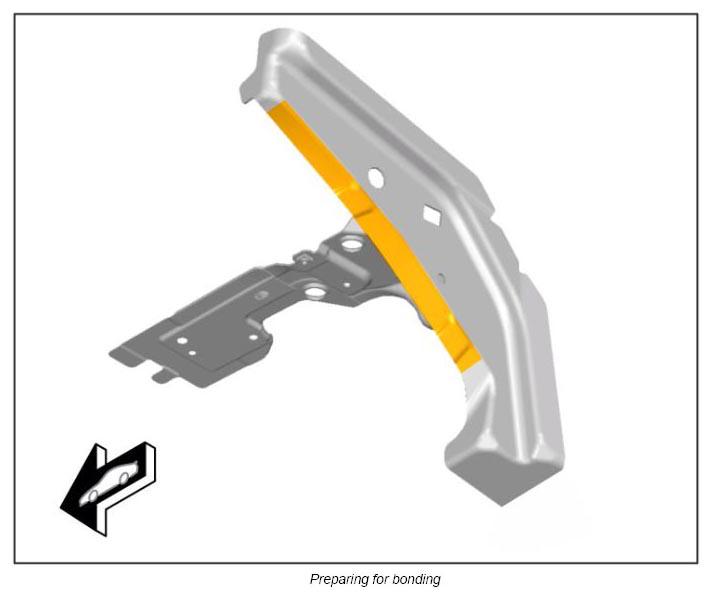

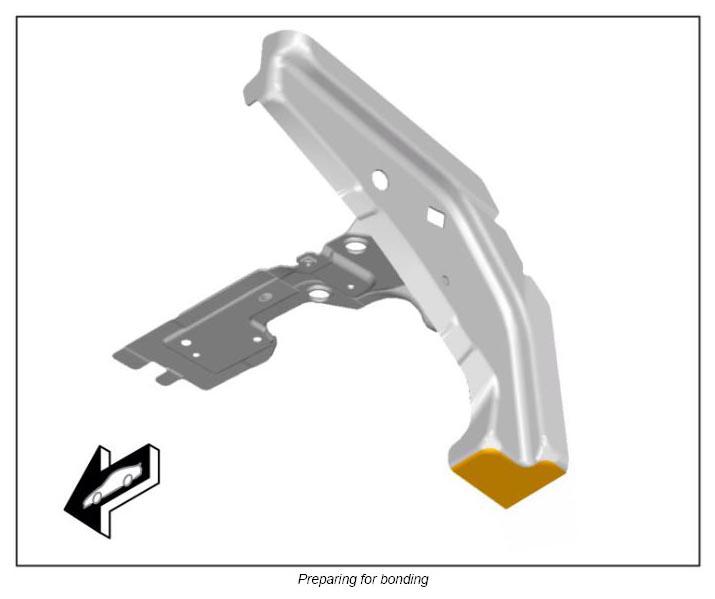

Prepare connection areas for bonding → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
