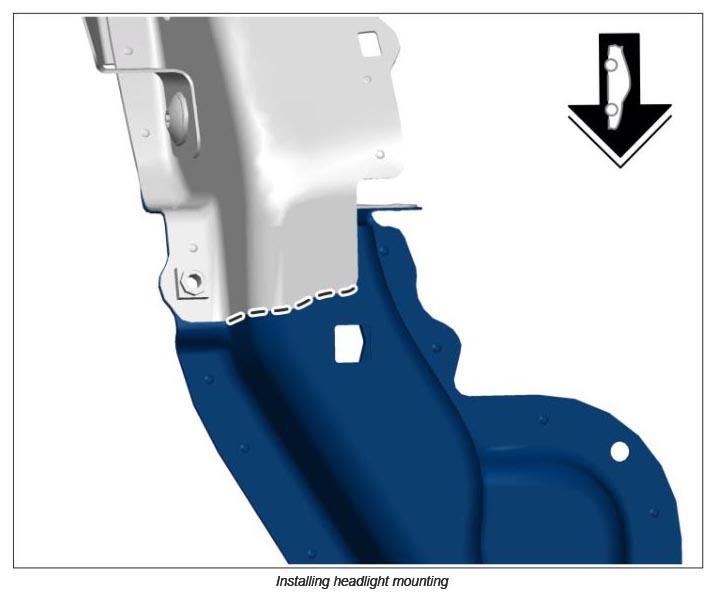

Installing Headlight Mounting

Install headlight mounting and fit it using a straightening set. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS - SECTION ON "INSTALLING "
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

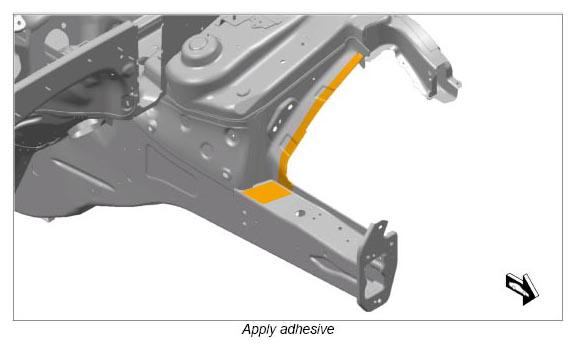

Apply adhesive in the marked area on the body.
Apply adhesive evenly over the entire bonding surface. → Application depth: 0.5 mm

→ 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

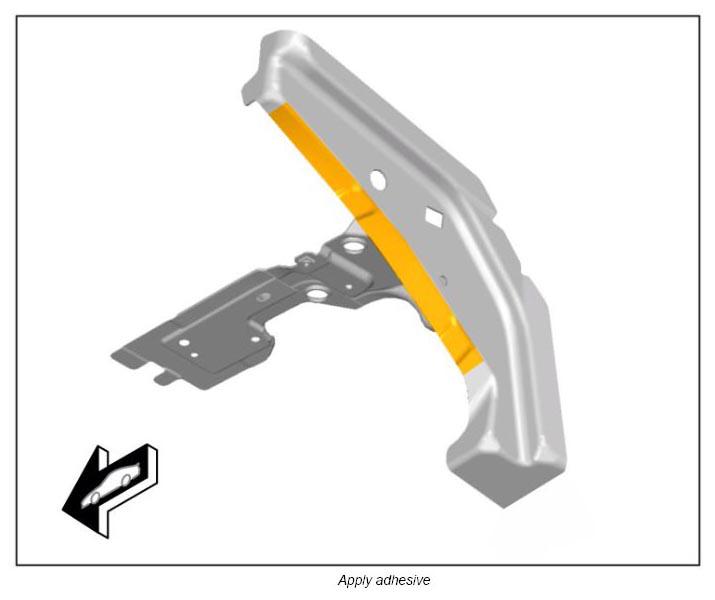

Apply adhesive in the marked areas on the support.

Apply adhesive evenly over the entire bonding surface. → Application depth: 0.5 mm

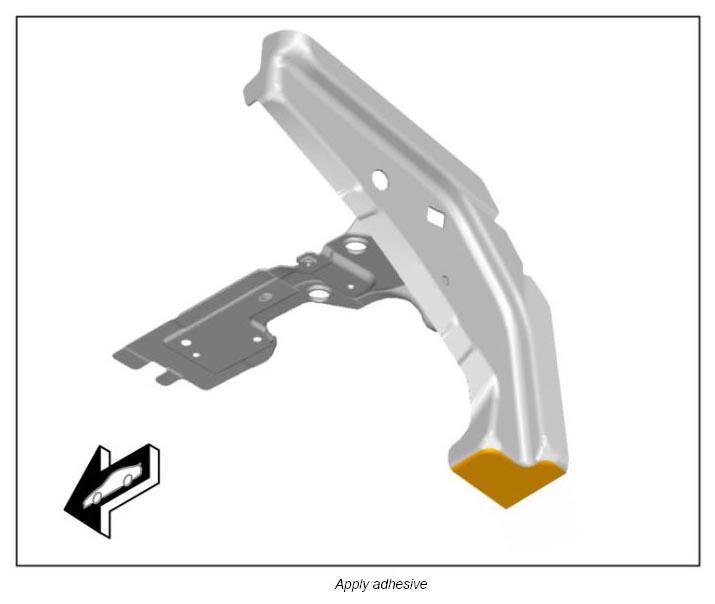

3.1. Also apply an adhesive bead of sealant all around the bonding surface. → Application depth: 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

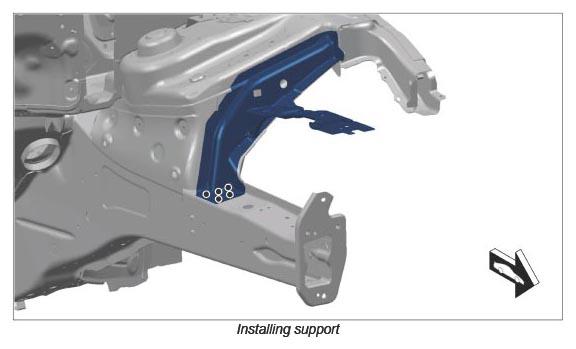

Rivet in support. → BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

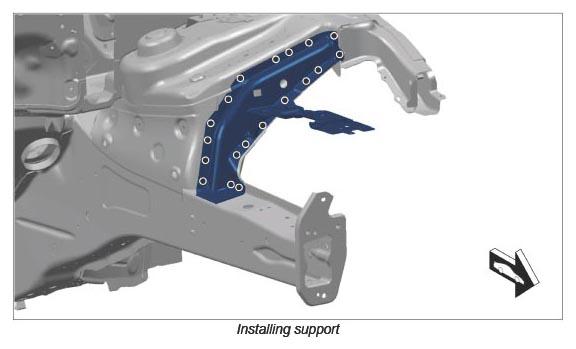

Resistance spot-weld support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

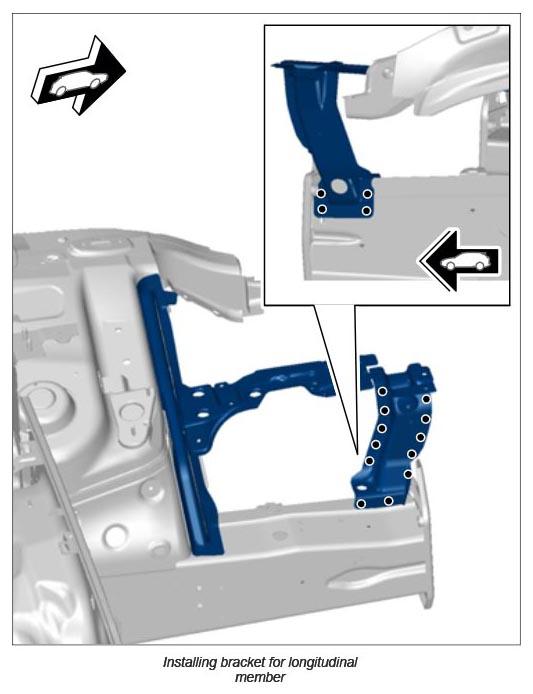

Resistance spot-weld the longitudinal member brackets.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

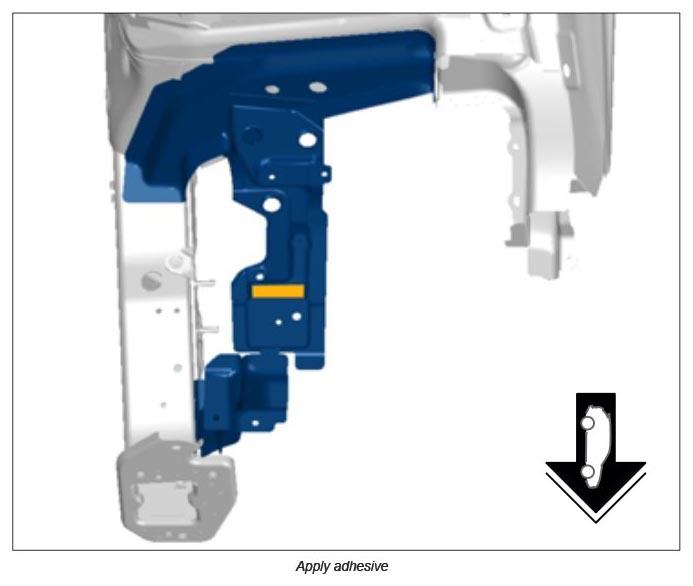

Apply adhesive to the area marked in yellow.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

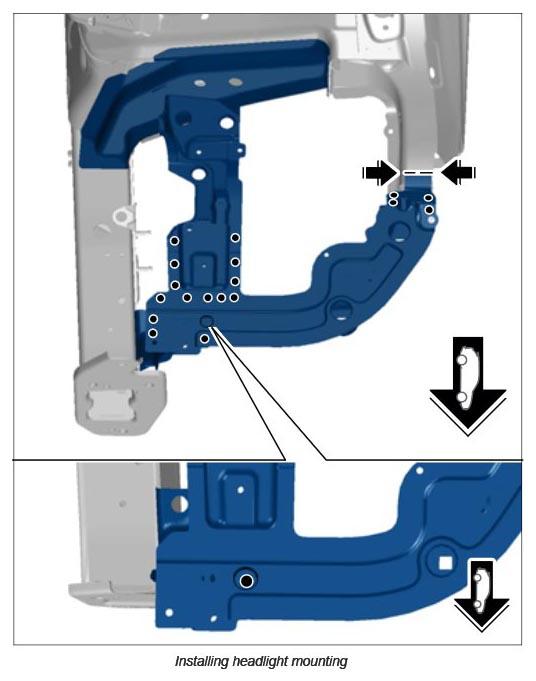

Resistance spot-weld the headlight mounting.

8.1. Apply a full weld to the area using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Apply a full weld to the marked area using inert gas.
