Removing Spring Strut Mount

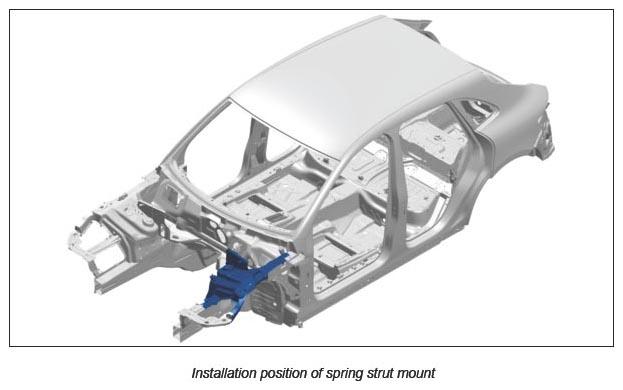

Fig 1: Spring Strut Mount Component Location
G12889011Courtesy of PORSCHE CARS NORTH AMERICA, INC.

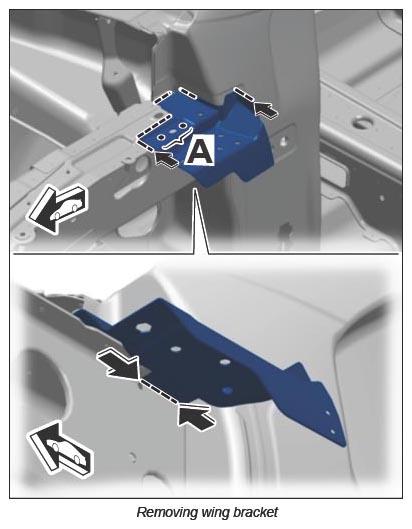

  1. Remove wing bracket.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 1.1. Drill out spotwelds -A-  using spotweld drill;   .
    2. 1.2. Grind down welded seams.
      G12889012Courtesy of PORSCHE CARS NORTH AMERICA, INC.

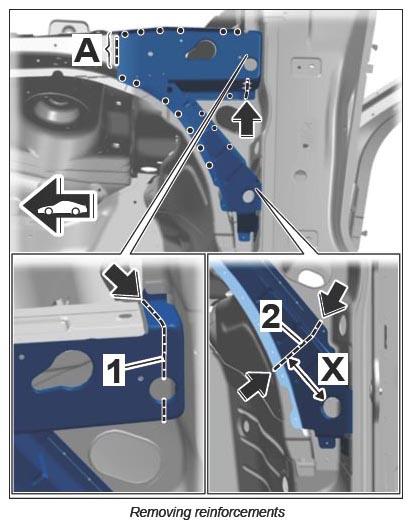

  2. Remove reinforcements.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 2.1. Drill out spotwelds using spotweld drill;   .
    2. 2.2. Make a rough cut -1-  .
    3. 2.3. Mark and make cut -2-  . → Distance: 80 mm
    4. 2.4. Grind down welded seam -A-  .
      G12889013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

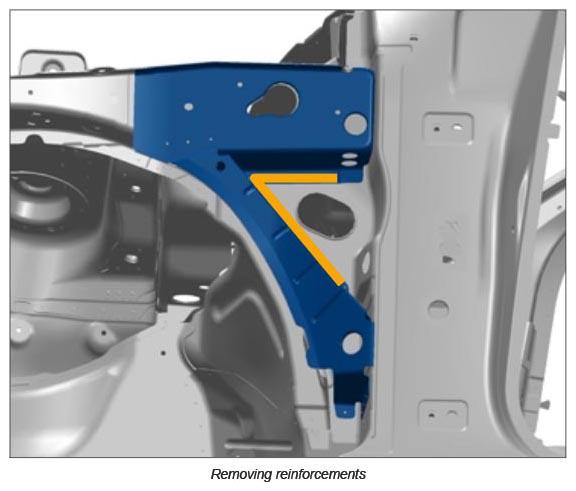

  3. Heat bonding areas.
    1. 3.1. Remove reinforcements.
      G12889014Courtesy of PORSCHE CARS NORTH AMERICA, INC.

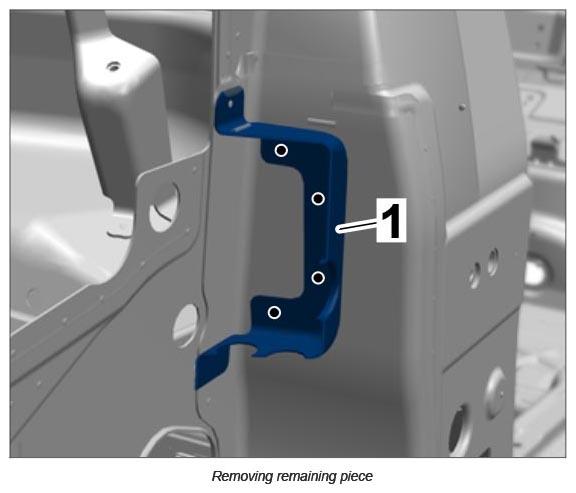

  4. Remove remaining piece of upper reinforcement -1-  .

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

    1. 4.1. Drill out spotwelds using spotweld drill;   .
      G12889015Courtesy of PORSCHE CARS NORTH AMERICA, INC.

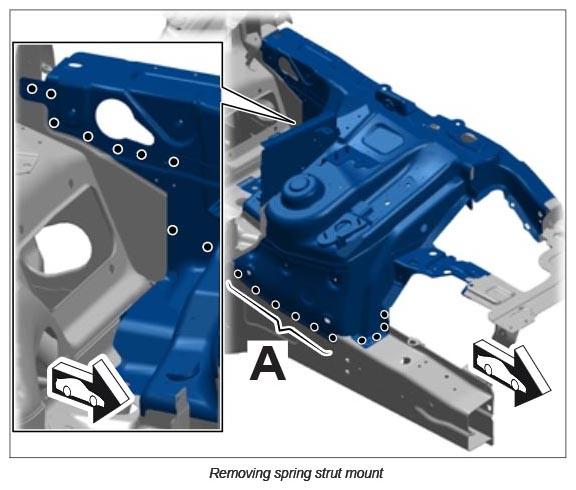

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

  5. Drill out spotwelds using spotweld drill;   .
    G12889016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

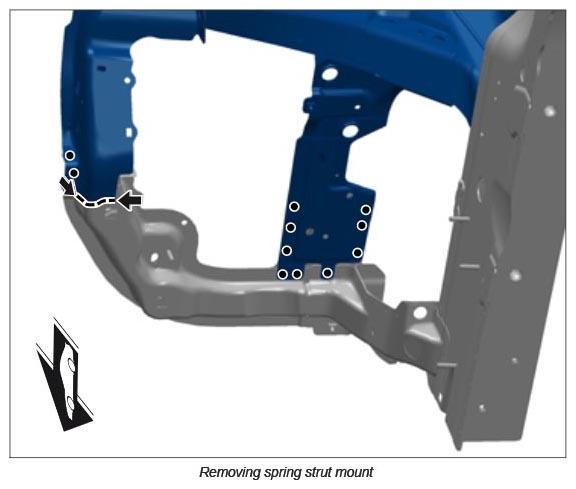

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

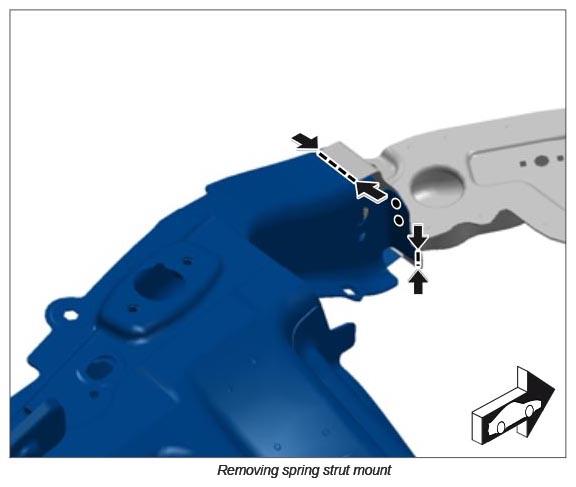

  6. Drill out spotwelds using spotweld drill;   .
    1. 6.1. Grind down welded seams.
      G12889017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      G12889018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

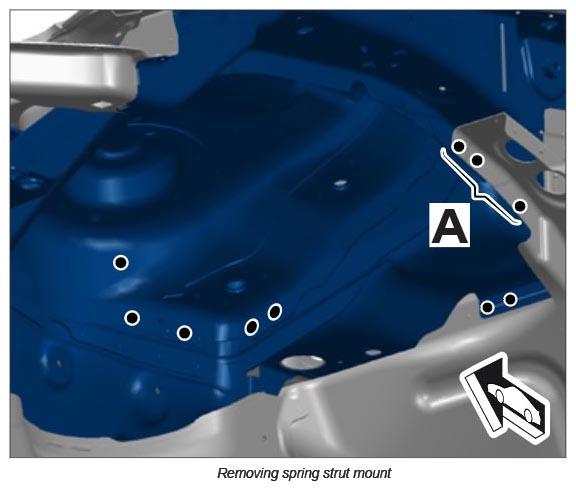

  7. Drill out spotwelds -A-  from the inside.
    G12889019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

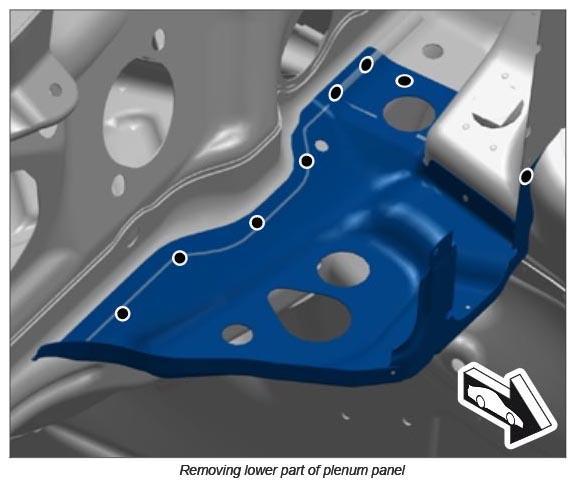

  8. Drill out spotwelds on lower part of plenum panel using spotweld drill,   .
    G12889020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

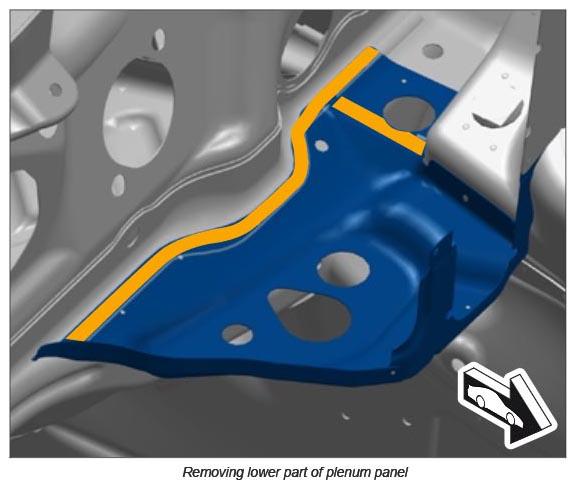

  9. Heat bonding areas.
    1. 9.1. Remove lower part of plenum panel.
      G12889021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

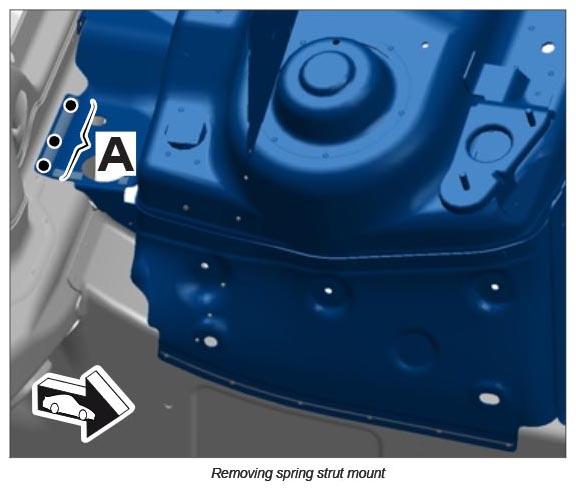

  10. Drill out spotwelds -A-  using spotweld drill;   .
    G12889022Courtesy of PORSCHE CARS NORTH AMERICA, INC.

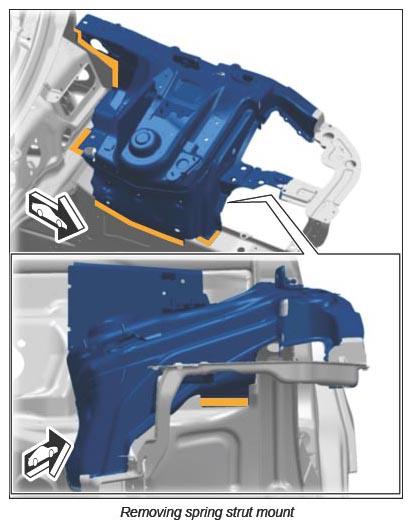

  11. Heat bonding areas.
    1. 11.1. Remove spring strut mount.
      G12889023Courtesy of PORSCHE CARS NORTH AMERICA, INC.
