Preparing Spring Strut Mount For Installation

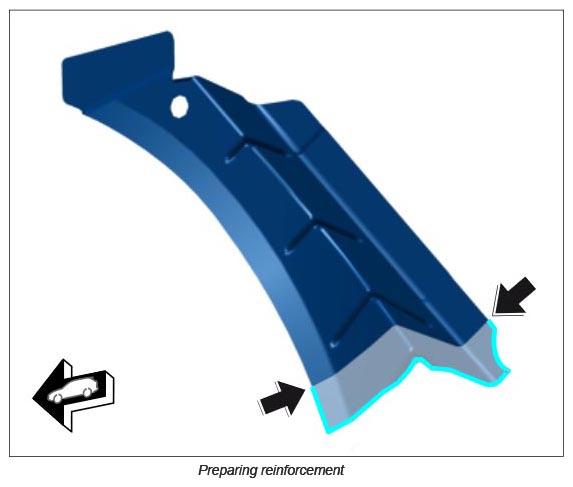

Cut reinforcement in area leaving an overlap to the remaining piece of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit in and secure reinforcements.

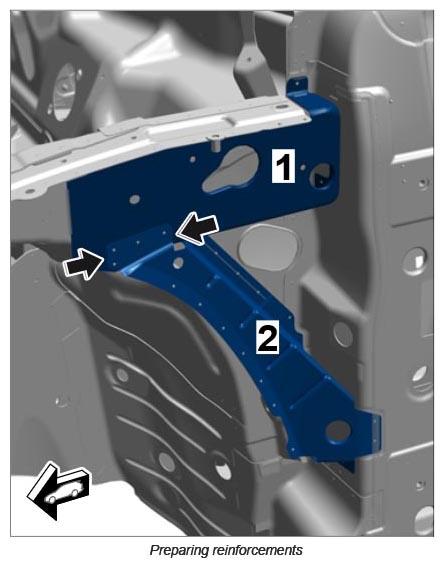

2.1. Tack-weld upper part -1- and lower part -2- of reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove reinforcements.

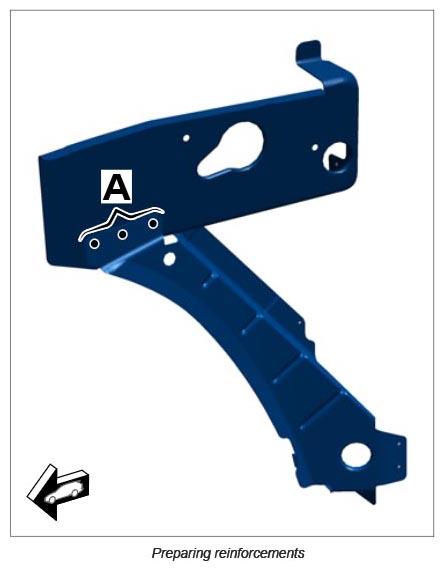

3.1. Resistance spot-weld the marked area -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

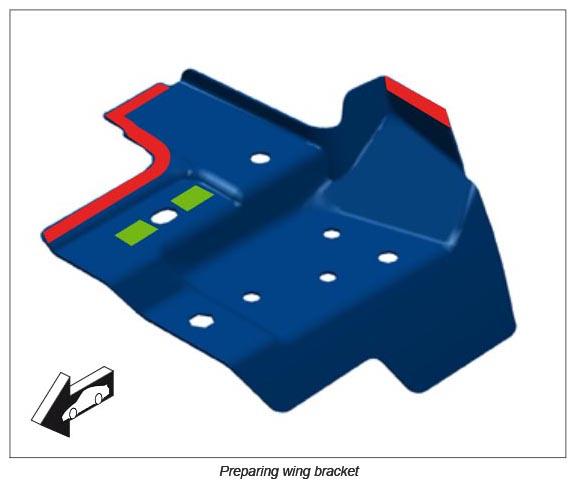

Prepare wing bracket for welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

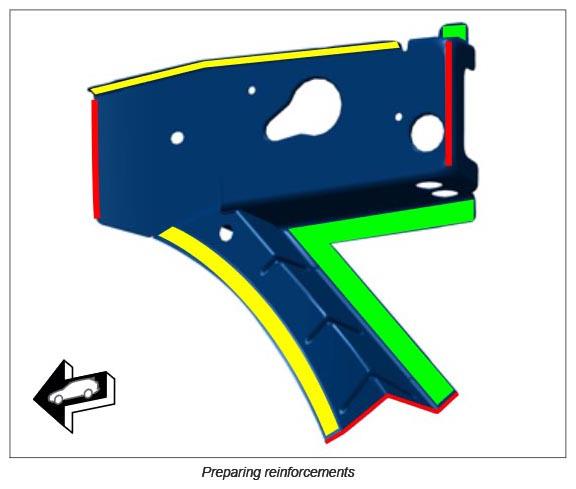

Prepare reinforcement for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

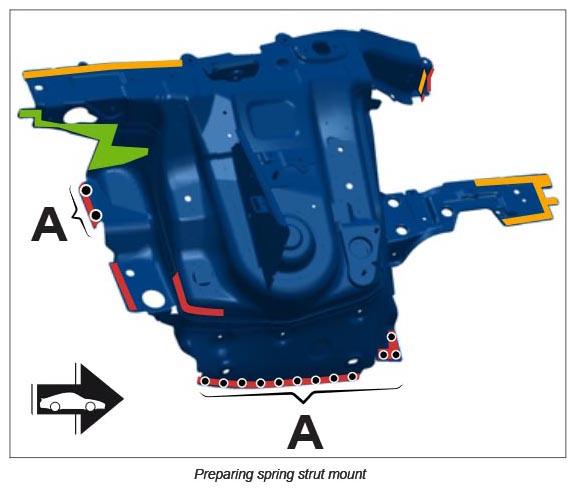

Drill holes for plug-welding in the marked areas -A- on the spring strut mount using a drill bit with a diameter of → Diameter: 8.0 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

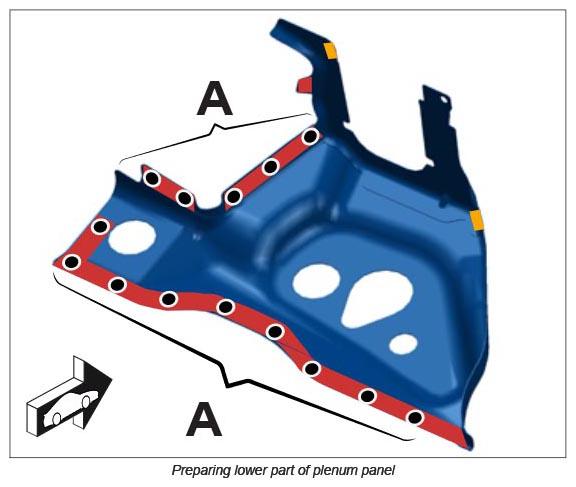

Drill holes for plug-welding in the marked areas -A- on the lower part of the plenum panel using a drill bit with a diameter of → Diameter: 8.0 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Orange	Resistance spot-welding
Green	Resistance spot-welding + bonding
Red	Plug-welding/apply a full weld using inert gas without bonding
