Technical Values - Front Seat Belt System
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

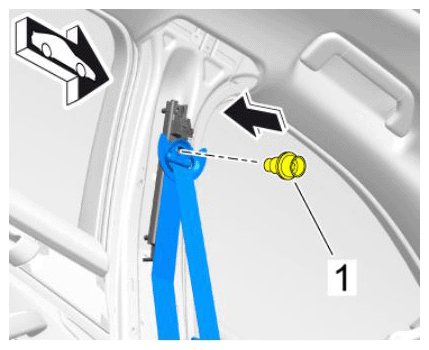

| Fastening screw securing sash guide cover to adjustment fitting | Tightening torque | 50 Nm (37 ftlb.) | |||
|
Sash guide cover on |
|||||

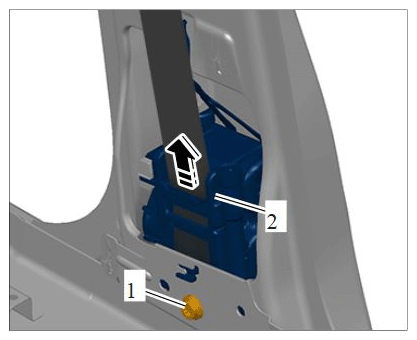

| Fastening screw securing seat-belt pretensioner to B-pillar | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Removing seat-belt pretensioner |
|||||

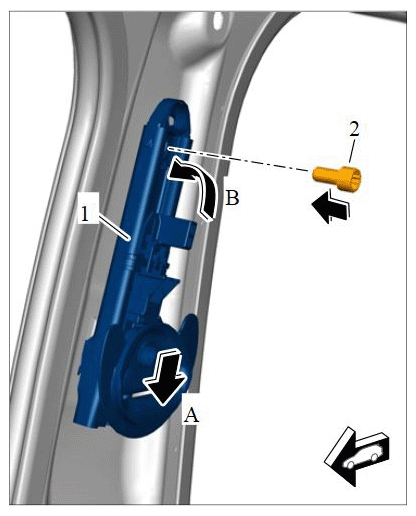

| Fastening screw securing adjustment fitting to B-pillar | Item 2 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Installing adjustment fitting |
|||||

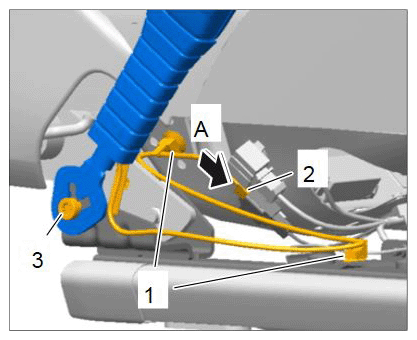

| Fastening screw securing front belt lock to seat | Item 3 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Installing seat-belt buckle |
|||||

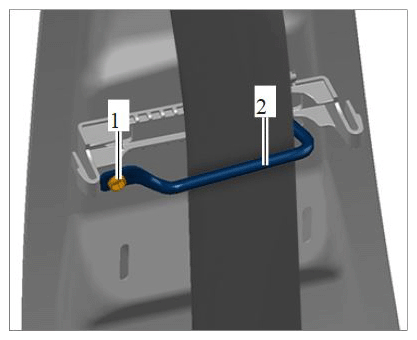

| Fastening screw securing belt guide to B-pillar | Item 1 | Tightening torque | 4.5 Nm (3 ftlb.) | ||
|
Removing belt guide |
|||||
