Technical Values -60- Sliding Roof, Slide/Tilt Sunroof
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Glass sunroof motor to glass sunroof frame | Internal Torx screw, M5 x 28, replace | Tightening torque | 2 Nm (1.5 ftlb.) | ||
| Sun blind motor to glass sunroof frame | Internal Torx screw, M5 x 28, replace | Tightening torque | 2 Nm (1.5 ftlb.) | ||
| Fastening screw for bracket | Tightening torque | 8 Nm (6 ftlb.) | |||
|

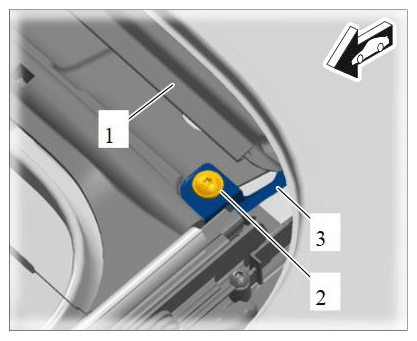

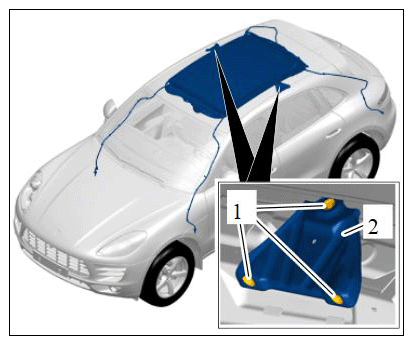

Removing bracket |
|||||

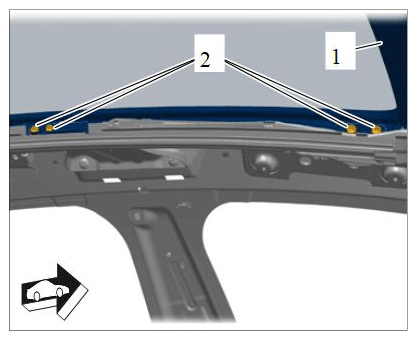

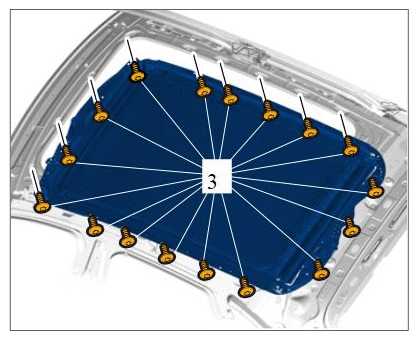

| Fastening screws for roof assembly | Observe specified tightening sequence | Tightening torque | 8 Nm (6 ftlb.) | ||
|

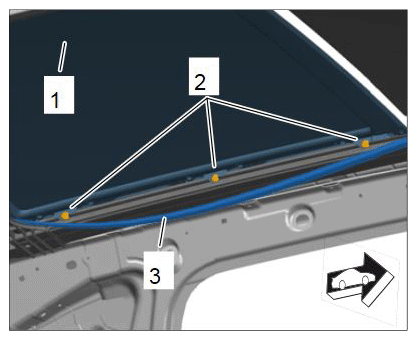

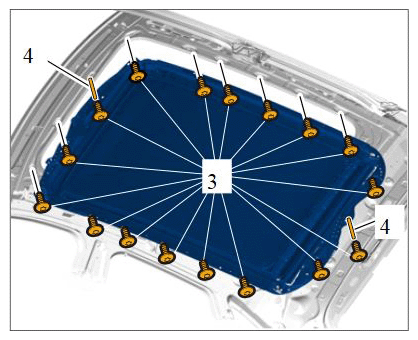

Installing roof assembly |
|||||
| Securing roof assembly to body | Diameter | 8 mm (6 ftlb.) | |||
|
Positioning roof assembly |
|||||
| Fastening screw for sliding-roof panel | Tightening torque | 7 Nm (5 ftlb.) | |||
|
Removing front panel |
|||||
| Fastening screw for rear sliding-roof panel | Tightening torque | 7 Nm (5 ftlb.) | |||
|
Removing rear panel |
|||||
| Fastening screw for roll-up sunblind | Tightening torque | 2.5 Nm (2 ftlb.) | |||
|
Removing guide |
|||||
