Removing Trailer Hitch

NOTE:

The self-locking nuts and screws must always be replaced .

NOTE:

Another person is needed for removing and installing the trailer hitch because of its weight .

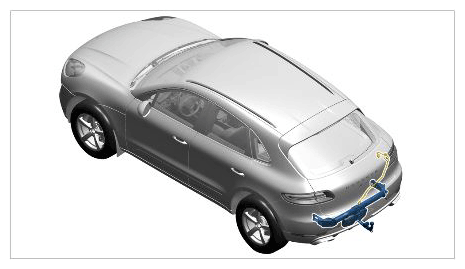

Installation position of trailer hitch

Unscrew fastening screws -1- for trailer hitch.

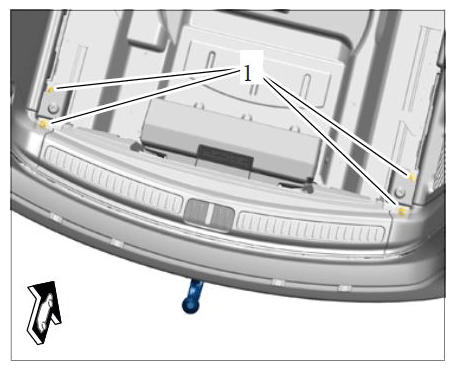

Fastening screws for trailer hitch
Carefully pull the trailer hitch back and unclip mounting -1- for wire harness.

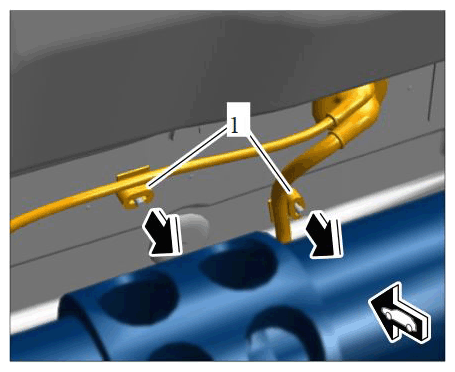

Wire harness
Pull out grommet and pull wire harness out of the bodyshell opening.
Remove trailer hitch.
