Installing Number Plate Cover

NOTE: Self-tapping screws are used to secure the number plate cover. When fitting the number plate cover for the first time (e.g. on a new front apron), the screws can be screwed directly into the front apron. There is no need to drill any holes.

Installation is performed in reverse order. During initial fitting or after replacing the front apron, the following steps must be carried out:

  1. Remove any guide pins -5-  on the number plate cover.
  2. Centre the number plate cover, making sure that the side contour is positioned correctly arrow-  .
  3. Screw in top fastening screws -4-  .
  4. Screw in bottom fastening screws -3-.

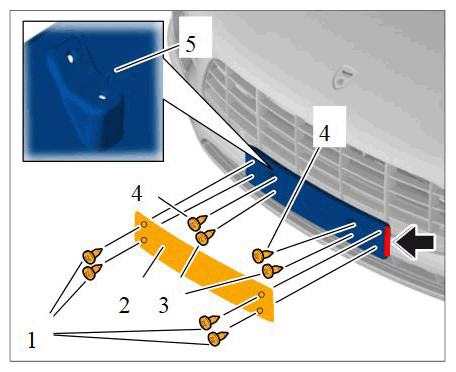

    G11981450

    Number plate cover
