Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for rear spoiler Item 3 Tightening torque 6 Nm (4.5 ftlb.)

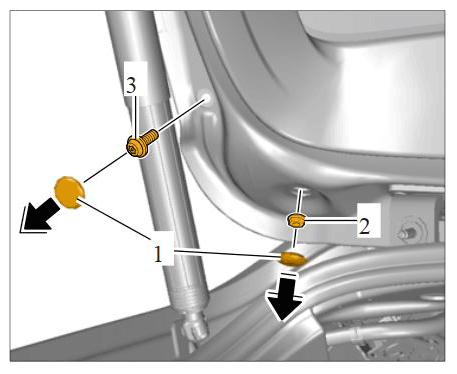

G11981421

Loosening rear spoiler
Fastening nut for rear spoiler Item 2
    Tightening torque 6 Nm (4.5 ftlb.)
G11981422

Loosening rear spoiler
