Removing Front Air Grille

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Remove fog lights -3-. → 946419 REMOVING AND INSTALLING FOG LIGHTS
  2. Disconnect electric plug connections -1-  on the auxiliary headlight and guide out wire harness -5-  at the air grille -2-  .
  3. Unscrew fastening screws -4-  .
  4. Unclip air grille -2-  on the front apron and remove it.

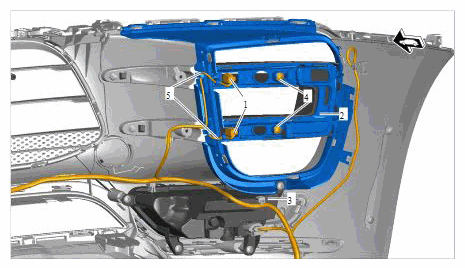

    G11981378

    Front right air grille
