Removing Front Spoiler

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Release expansion rivets -1-  and pull them out.
  2. Release all fixing clips -2-  and unclip front spoiler from front apron.
  3. Remove front spoiler.

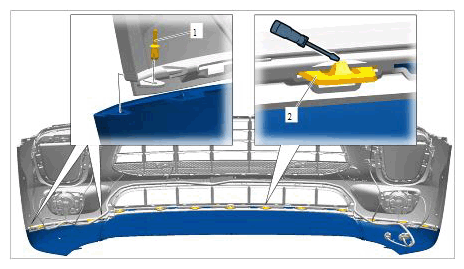

    G11981377

    Removing front spoiler
