Home >> Porsche >> 2017 >> Macan GTS >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 63 Bumpers -- (95B) MACAN >> WM 635019 Removing And Installing Rear Bumper (Except MACAN Sport Edition) >> Removing Rear Bumper

Removing Rear Bumper

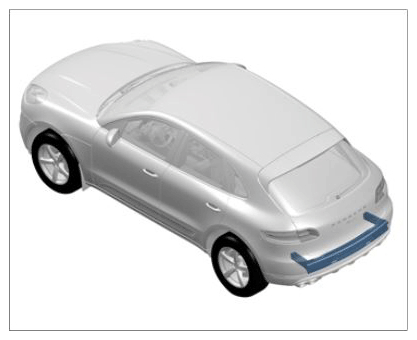

G11984445

Installation position of bumper

  1. Unscrew and remove fastening screws -1-  at the left and right of the bumper.

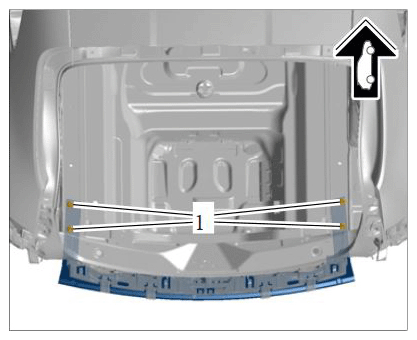

    G11984446

    Bumper mounting

  2. Pull the bumper out to the rear.
