Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw securing door hinge to rear door | Tightening torque | 55 Nm (41 ftlb.) | |||
|

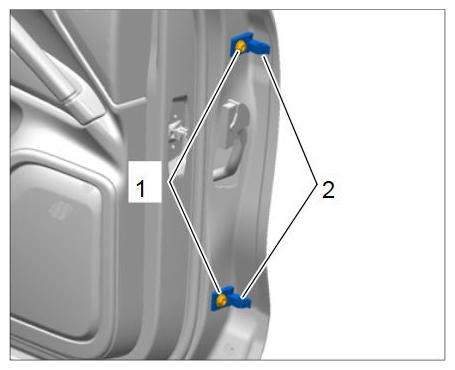

Removing rear door hinge on door side |
|||||
| Fastening screw securing door hinge to B-pillar | Tightening torque | 50 Nm (37 ftlb.) | |||
|

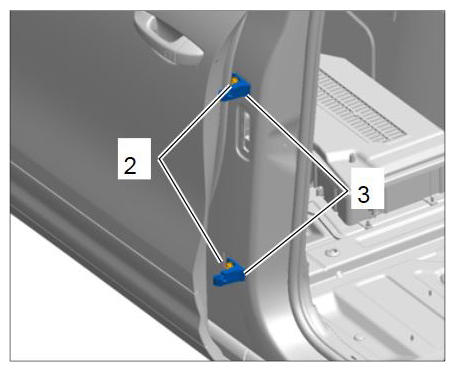

Mounting for rear door hinge on body side at the outside |
|||||
| Fastening screw securing door hinge to inner B-pillar | Tightening torque | 50 Nm (37 ftlb.) | |||
|

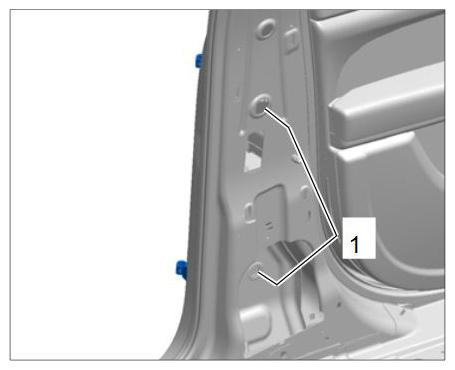

Mounting for rear door hinge on body side at the inside |
|||||
