Adjusting Lock Peg

NOTE:

The striker pin can be adjusted by changing the plasticity of the adjusting element in the B-pillar .
The setting is retained when the striker pin is removed .

Adjusting element for striker pin

Loosen fastening screws -2- .
Move lock peg outwards.

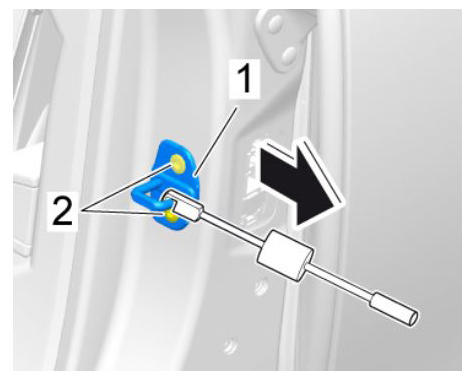

Moving lock peg outwards
1. 2.1. Move the lock peg -1- outwards (if necessary) using slide hammer kit Nr.168 .
Adjust the lock peg back/down/up (if necessary).

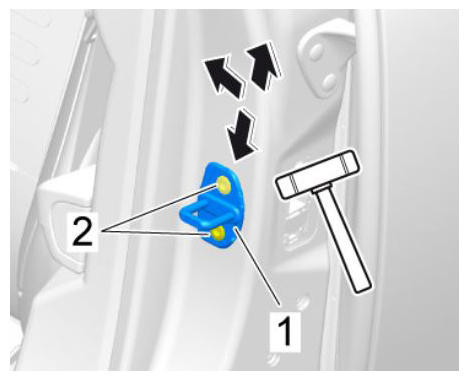

Adjusting lock peg
1. 3.1. Move catch bar -1- to the required position using a plastic hammer.
2. 3.2. Carefully close the door and check adjustment.
Tighten fastening screws -2- to Tightening torque 25 Nm (19 ftlb.) until secure.

95BAA1, 95BAB1, 95BAC1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C46, C96, C97, C98, C99
