Control Diagram

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

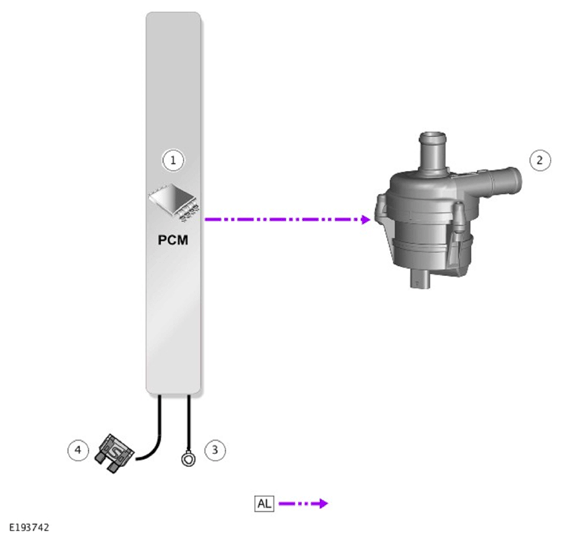

G12005670

AL = PULSE WIDTH MODULATION (PWM).

ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 Charge air coolant pump
3 Ground
4 Power supply
