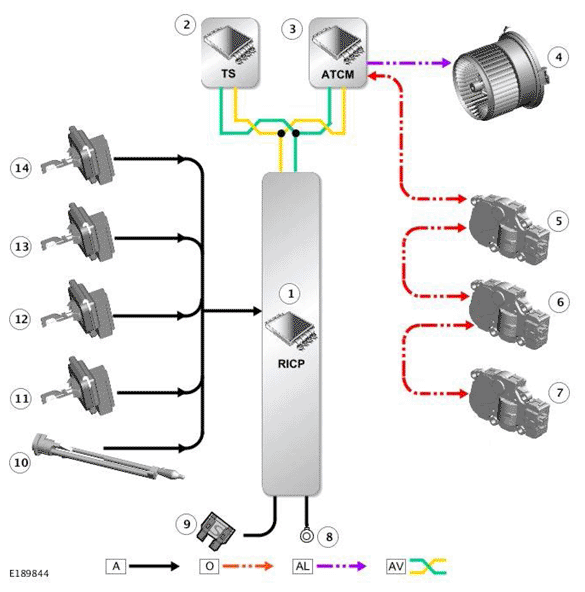

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Range Rover and 2017 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear Integrated Control Panel (RICP) |
| 2 | Touch Screen (TS) |
| 3 | Automatic Temperature Control Module (ATCM) |
| 4 | Blower Motor |
| 5 | Left temperature blend motor |
| 6 | Right temperature blend motor |
| 7 | Distribution motor |
| 8 | Ground |
| 9 | Supply |
| 10 | Evaporator temperature sensor |
| 11 | Duct air temperature sensor |
| 12 | Duct air temperature sensor |
| 13 | Duct air temperature sensor |
| 14 | Duct air temperature sensor |
