Auxiliary Blower Control Module

WARNING: This page is about a different car, the 2018 Land Rover Range Rover and 2017 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

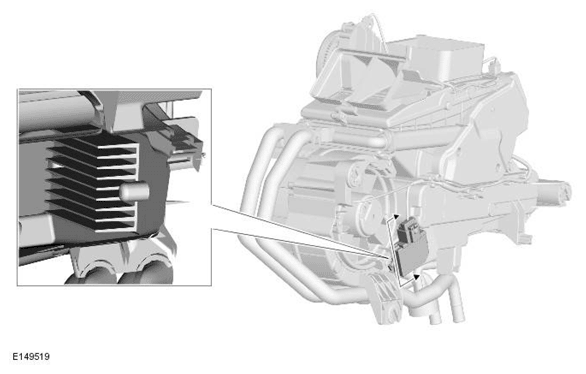

G11701582

The auxiliary blower consists of an open hub, centrifugal fan powered by an electric motor. Power for the blower is supplied from the auxiliary blower relay in the Rear Junction Box (RJB) via the auxiliary blower control module, which is installed in the left side of the auxiliary climate control assembly, immediately downstream of the blower. To control blower speed, the Automatic Temperature Control Module (ATCM) outputs a Pulse Width Modulation (PWM) signal to the auxiliary blower control module to regulate the voltage of the auxiliary blower power supply.
