Component Location
WARNING: This page is about a different car, the 2018 Land Rover Range Rover and 2017 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

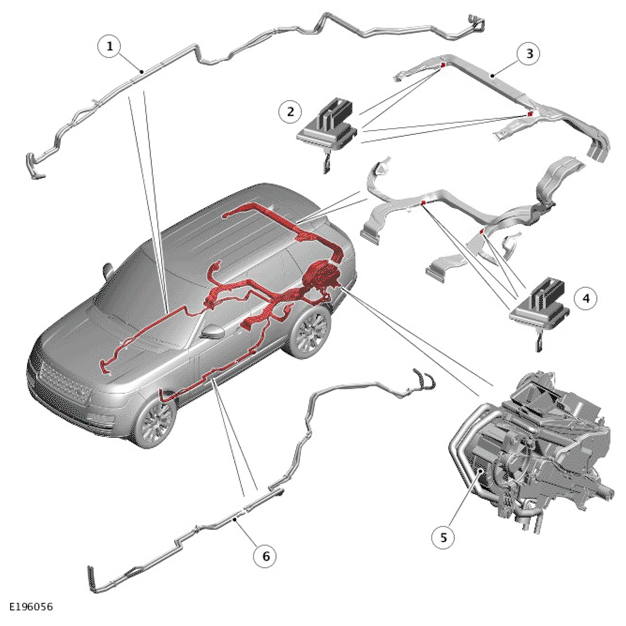

1 OF 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant pipes |
| 2 | Duct air temperature sensor - Face ducts |
| 3 | Air distribution system |
| 4 | Duct air temperature sensor - Lap and foot ducts |
| 5 | Auxiliary climate control assembly |
| 6 | Air conditioning pipes |

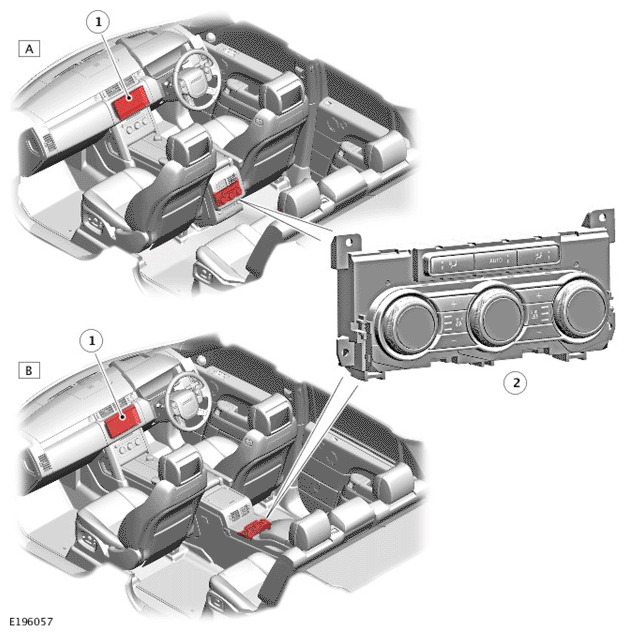

2 OF 2
| ITEM | DESCRIPTION |
|---|---|
| A | Rear Integrated Control Panel (RICP) - All except business seats |
| B | Rear Integrated Control Panel (RICP) - Business seats |
| 1 | Touch Screen (TS) |
| 2 | Rear Integrated Control Panel (RICP) |
