Turbocharger Cooling
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

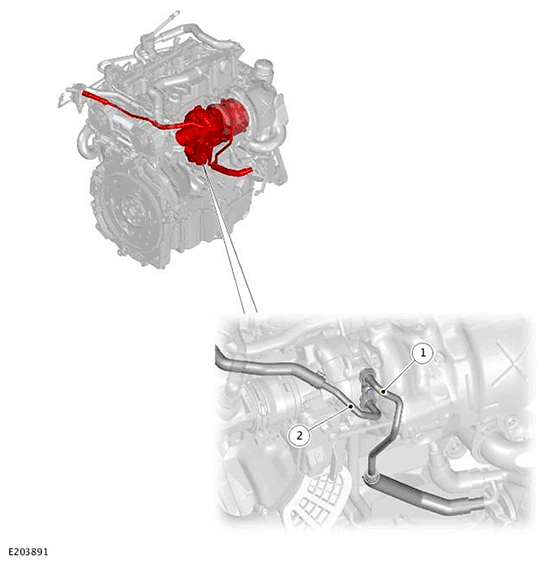

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant inlet connection |
| 2 | Engine coolant outlet connection |
The turbocharger also requires a supply from the engine coolant system to assist with the cooling due to the high loads on the turbocharger. A pipe connection from the engine routes engine coolant through the turbocharger bearing housing. Once the engine coolant has passed through the bearing housing it is returned to the cooling system.
