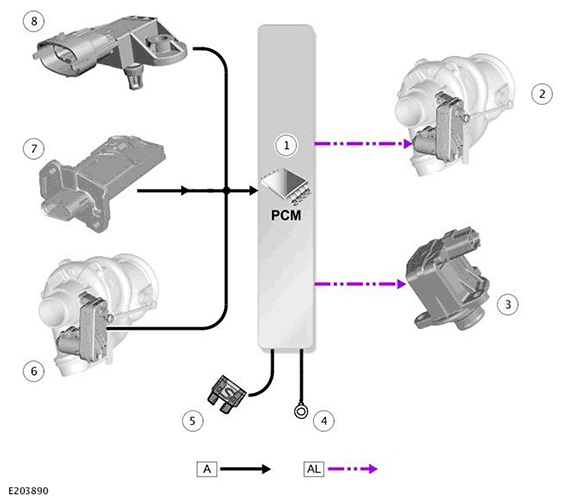

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Turbocharger wastegate actuator |
| 3 | Compressor recirculation valve |
| 4 | Ground |
| 5 | Power supply |
| 6 | Turbocharger wastegate actuator position sensor |
| 7 | Mass Air Flow and Temperature sensor (MAFT) |
| 8 | Manifold Absolute Pressure and Temperature sensor (MAPT) |
