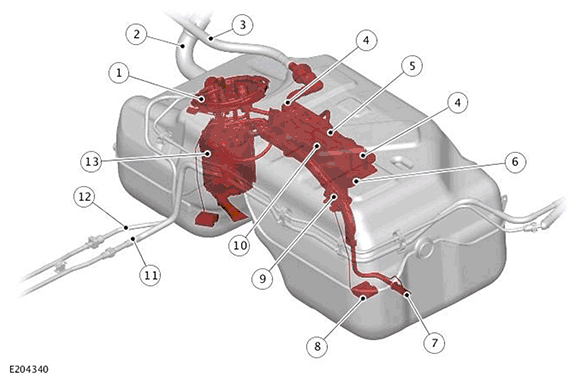

Fuel Tank
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange locking ring - Fuel pump module |
| 2 | Fuel filler hose |
| 3 | Fuel tank breather |
| 4 | Roll over vent valve |
| 5 | Fuel tank internal breather |
| 6 | Fuel Limit Vent Valve (FLVV) |
| 7 | Suction pipe |
| 8 | Float - Fuel level sensor B |
| 9 | Fuel level sensor B |
| 10 | Fuel tank internal bracket |
| 11 | Purge line - From the Evaporative Emission (EVAP) canister to the purge valve |
| 12 | Fuel delivery line |
| 13 | Fuel pump module |
The fuel tank is manufactured using six layer co-extruded blow molding technology providing both high mechanical strength and complete emissions integrity. The fuel tank is a saddle tank design which is mounted under the rear seat floorpan, forward of the rear suspension. The fuel tank is secured with two straps which are bolted in position to the vehicle body. The fuel filler neck is produced from stainless steel.
The fuel tank provides the following:
- Storage of fuel. The system must contain a given quantity of fuel and must avoid leakage and limit evaporative emissions.
- Filling. The fuel tank must be filled in a secure way, without sparks.
- Provide a method for measuring the level of fuel in tank.
- Venting. The over-pressure is not allowed, the fuel vapors must be managed through valves.
- Provide a method for delivering the fuel to the engine.
The fuel tank has a storage capacity of 70 liters (15.4 gallons).
The fuel tank contains a fuel pump module which collects fuel from both sides of the tank. The fuel pump provides sufficient fuel is available in the swirl pot to supply the engine's fuel demands. The Low Pressure (LP) fuel pump supplies fuel to the High Pressure (HP) fuel pump which is mounted on the engine.
An internal bracket allows for the attachment of the suction pipe and the fuel level sensor B.
The internal breather is connected to a stub port passing through the fuel tank carcass. An external hose connect this port to the top of the filler neck. This enables the fuel tank to be filled and controls the fuel cut off during filling.
Fuel level inside the tank is monitored by two fuel level sensors.
Fuel Limit Vent Valve
The Fuel Limit Vent Valve (FLVV) allows the fuel tank to be filled to its maximum. The air within the fuel tank expelling through an internal breather which is connected to a stub port, passing through the fuel tank carcass. A combined fuel vapor external breather is connected to this port. A pipe connection splits the combined hose to independently connect pipes to the fuel filler neck and the Evaporative Emission (EVAP) canister. For additional information, refer to: EVAPORATIVE EMISSIONS
