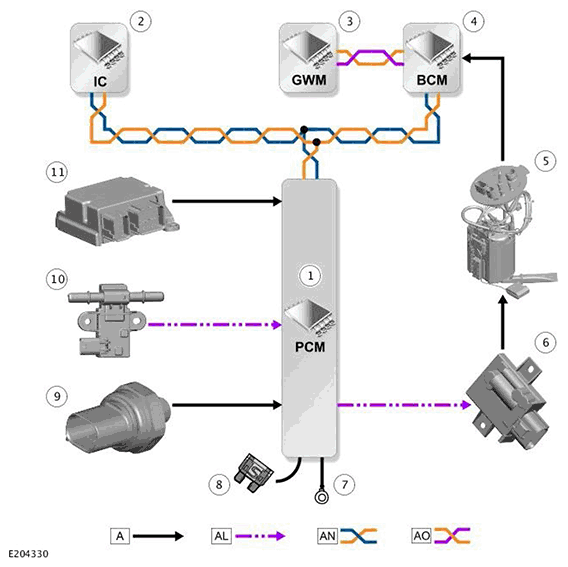

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AO = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Gateway Module (GWM) assembly |
| 4 | Central Junction Box (CJB) |
| 5 | Fuel pump module |
| 6 | Fuel Pump Driver Module (FPDM) |
| 7 | Ground |
| 8 | Power supply |
| 9 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 10 | Flex Fuel Sensor (FFS) - Brazil vehicles only |
| 11 | Restraints Control Module (RCM) - Crash signal |
