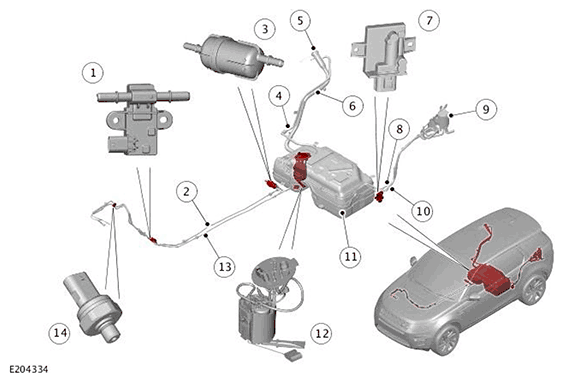

Component Location - 4 Of 4 - Flex Fuel System - Brazil Vehicles Only
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flex Fuel Sensor (FFS) |
| 2 | Fuel delivery line |
| 3 | Fuel filter |
| 4 | Fuel tank breather |
| 5 | Fuel filler cap |
| 6 | Fuel filler pipe |
| 7 | Fuel Pump Driver Module (FPDM) |
| 8 | Fuel tank ventilation pipe to the Evaporative Emission (EVAP) canister |
| 9 | EVAP canister |
| 10 | Purge line - From the EVAP canister to the purge valve |
| 11 | Fuel tank assembly |
| 12 | Fuel pump module |
| 13 | Fuel vapor purge line |
| 14 | Fuel pressure sensor - Low Pressure (LP) fuel system |
