Charge Air Cooler
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

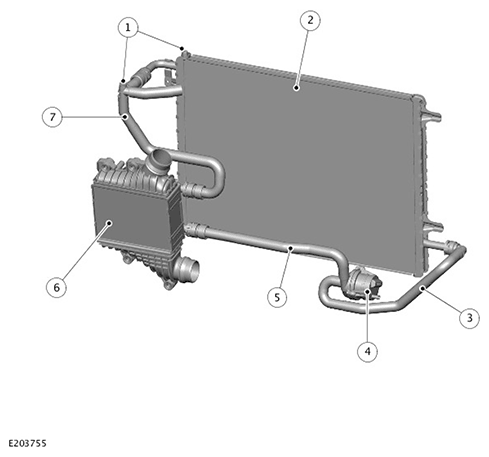

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw (2 off) |
| 2 | Charge air radiator |
| 3 | Hose - Charge air coolant pump to charge air radiator |
| 4 | Charge air coolant pump |
| 5 | Hose - Charge air cooler to charge air coolant pump |
| 6 | Charge air cooler |
| 7 | Hose - Charge air cooler to charge air radiator |
The charge air cooling system comprises:
- Charge air cooler
- Charge air radiator
- Charge air coolant pump.
The charge air cooler is an air-to-water heat exchanger, providing charge air cooling in combination with an electric coolant pump.
The charge air cooler is used to reduce the intake air temperature which increases the density of the intake air delivered to the combustion chambers.
The charge air cooler has a stand-alone cooling system with its own charge air radiator, charge air coolant pump and hoses. The only connection to the main cooling circuit is a pipe from the top of the charge air radiator to the top of the radiator.
For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
