Component Location - 3 Of 3 - Rear View

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

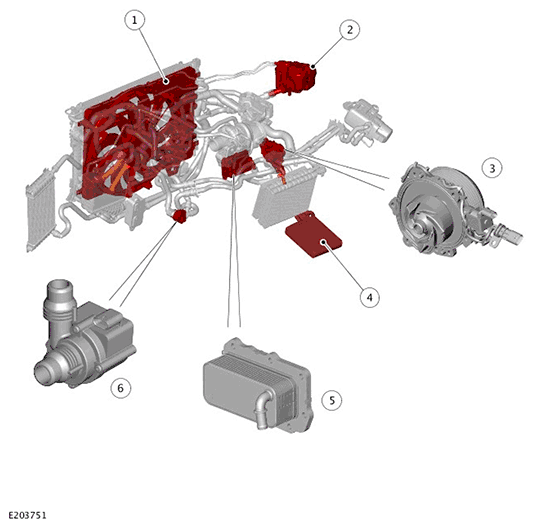

G11718055
ITEM DESCRIPTION
1 Electric cooling fan
2 Coolant expansion tank
3 Variable coolant pump
4 Heater core
5 Oil cooler
6 Auxiliary coolant pump
