Component Location - Fuel Fired Booster Heater Without Remote Control

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

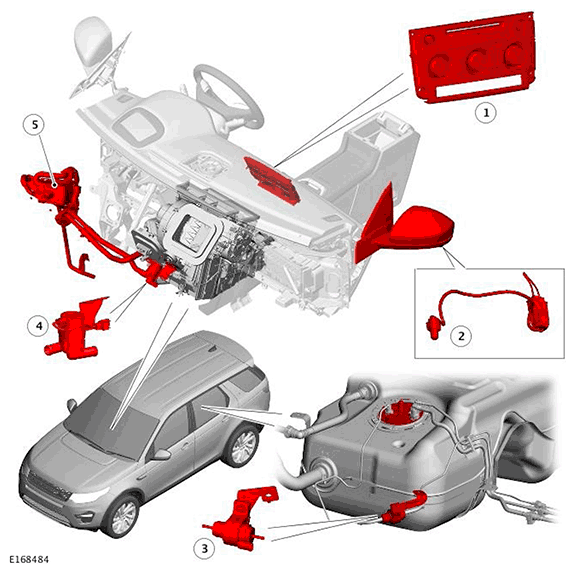

G11720286
ITEM DESCRIPTION
1 Integrated Control Panel (ICP) with Automatic Temperature Control Module (ATCM)
2 Ambient Air Temperature (AAT) sensor
3 Fuel Fired Booster Heater - fuel pump.
4 Fuel Fired Booster Heater - coolant pump
5 Fuel Fired Booster Heater (FFBH)
